Description

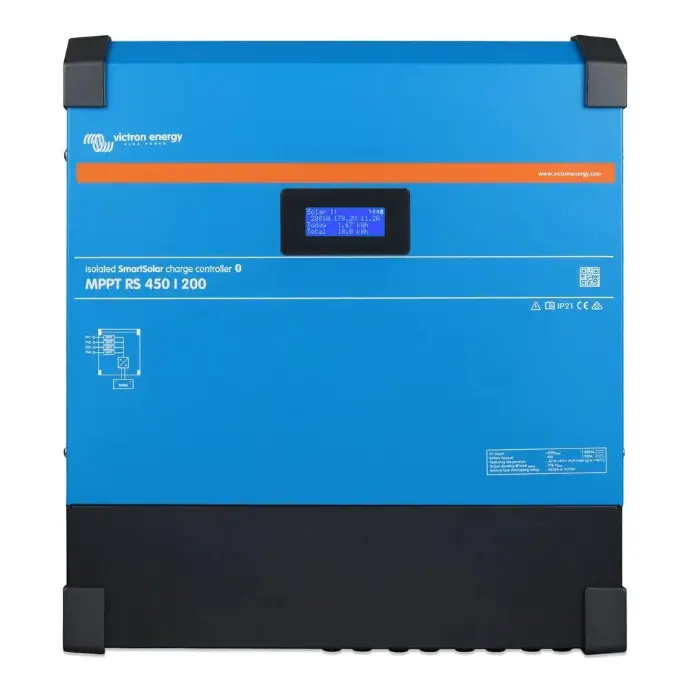

The SmartSolar MPPT RS 450/200-MC4 from Victron Energy is engineered for professional, large-capacity solar applications that demand advanced performance and reliability. Designed to support up to 11.5 kW of solar charging power, it operates across a wide MPPT range of 65–450 VDC and provides a powerful 200 A charge output for 48 V battery banks.
The controller features four independent MPPT trackers, optimising solar energy capture even in systems with varying panel orientations or partial shading. Its robust design includes isolated PV inputs, active cooling, and a durable metal casing, ensuring safe and continuous operation in demanding environments.
With Bluetooth connectivity, setup and configuration are seamless via the VictronConnect app, while remote monitoring and control are available through the Victron Remote Management (VRM) portal when paired with a GX device. Onboard data access is simplified by a built-in display, offering real-time insights into system status and performance.
The SmartSolar RS 450/200-MC4 is ideal for solar professionals and advanced energy users seeking reliable, scalable, and high-efficiency charge control for demanding energy systems.
Key Features
- 200 A rated charge current for 48 V battery systems
- Four MPPT trackers for optimal energy harvesting across multiple panel arrays
- 450 V maximum PV input voltage, with 65–450 V MPPT range
- Compatible with lithium and lead-acid batteries
- Bluetooth-enabled for setup and monitoring via VictronConnect
- Real-time display panel for system status and diagnostics
- Supports synchronised parallel operation of up to 25 units via VE.Can
- Programmable voltage range between 36 V and 60 V
- High efficiency up to 96% with only 15 mA self-consumption
- Integrated temperature sensor and PV isolation fault detection
- Programmable relay, analogue/digital inputs, and remote on/off support
- Designed in The Netherlands, manufactured in India
- Durable IP21-rated metal enclosure with fan-assisted cooling
Specifications
- Model: SmartSolar MPPT RS 450/200-MC4
- Product Code: SCC145120512
- Battery Voltage: 48 V
- Rated Charge Current: 200 A
- Max PV Input Voltage: 450 VDC
- MPPT Voltage Range: 65 – 450 VDC
- Number of MPPT Trackers: 4
- Max Charge Power: 11.5 kW at 57.6 V
- Max PV Input per Tracker: 9000 Wp / 20 A operational current / 25 A short-circuit
- Charge Algorithm: Multi-stage adaptive (adjustable)
- Charge Voltage – Absorption: 57.6 V (default, adjustable)
- Charge Voltage – Float: 55.2 V (default, adjustable)
- Programmable Voltage Range: 36 V to 60 V
- Battery Temperature Sensor: Included
- Max Efficiency: 96%
- Self-Consumption: 15 mA
- Display: Integrated front-panel LCD
- Communication Ports: VE.Direct, VE.Can, Bluetooth
- Relay Outputs: 1 programmable relay
- Remote On/Off: Yes
- General-Purpose I/O Ports: 2 analogue/digital in
- Operating Temperature Range: -40°C to +60°C (fan-assisted cooling)
- Humidity (Non-Condensing): Max 95%
- Enclosure Material and Colour: Steel, Blue RAL 5012
- Ingress Protection Rating: IP21
- Battery Connection Terminals: 4x M8 bolts (2 positive, 2 negative)
- PV Input Terminals: 1 pair MC4 connectors per tracker
- Dimensions (H x W x D): 487 x 434 x 146 mm
- Weight: 13.7 kg
- Standards: EN-IEC 62109-1 / -2
- Country of Origin: Designed in The Netherlands, made in India
