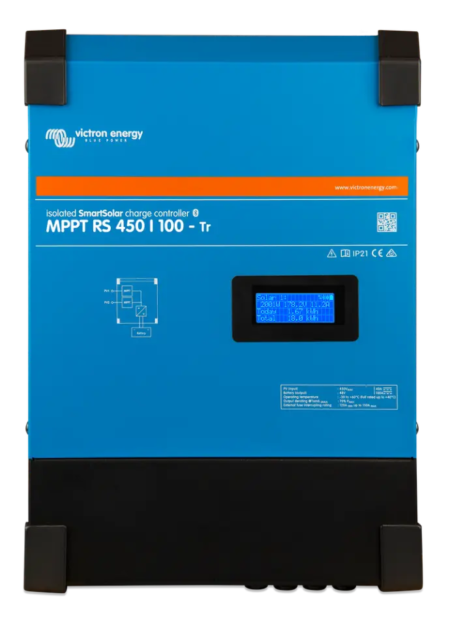

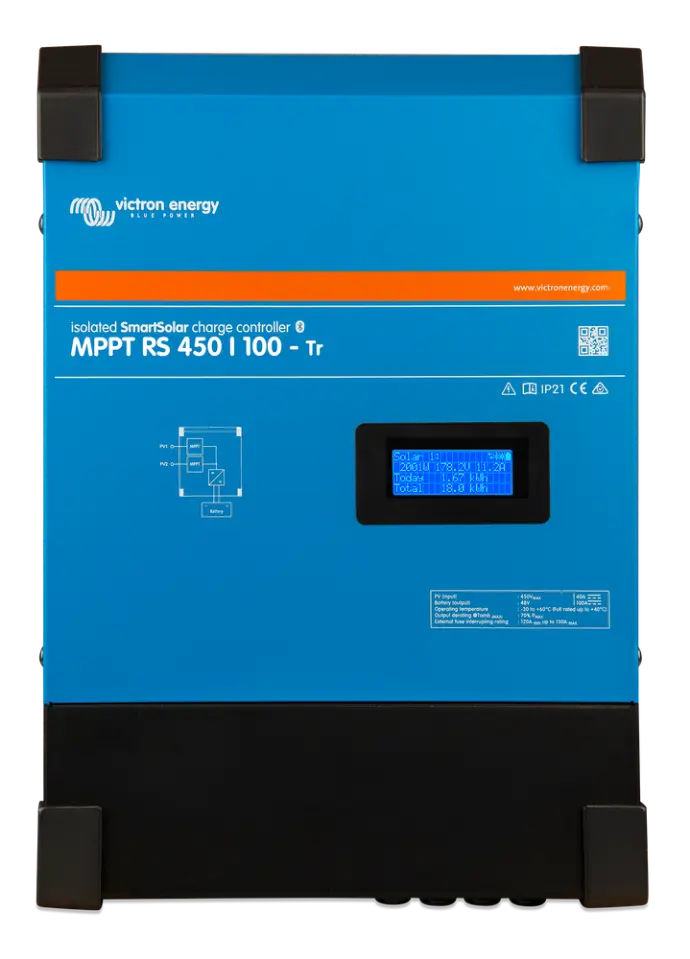

Victron Energy SmartSolar MPPT RS 450/100-MC4 SCC145110512

Victron part no. SCC145110512

£868.99Available to order, usually dispatched in 6 to 10 working days
Excellent on Google5 out of 5, from 34 reviews
  • Authorised Victron Energy InstallerListed on Victron’s own where-to-buy finder.
  • Not sure it suits your build?Book a free 30-minute call with Tom and talk it through before you spend anything.

“Their schematics are incredible and have so much detail.”Callum Cadney-Moon, Google review, February 2026

Usually dispatched in 6 to 10 working daysUK delivery, priced at checkout
5 years standard warrantyVictron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user. Victron warranty policy
14-day returnsOn unused standard items
Tom Alderdice
Not sure it's the right size?Free 30-minute call with Tom, or ring 01539 761 467.
Book a call
Overview

About this product

The SmartSolar MPPT RS 450/100-MC4 from Victron Energy is engineered to meet the demands of modern solar energy systems. Designed to support solar arrays up to 450 VDC and deliver up to 100 A of charging current, this unit is well-suited for off-grid, hybrid, and grid-connected applications.

Equipped with dual independent MPPT trackers, it maximises energy harvest even in systems with differently oriented panels or shaded environments. The wide voltage input range makes it compatible with a variety of panel configurations.

The controller integrates seamlessly into smart energy systems using the VictronConnect app via Bluetooth, while remote monitoring and management are available through the Victron Remote Management (VRM) portal when paired with a GX device.

Its rugged metal casing, isolated PV terminals, and active cooling make it a durable choice for demanding installations. An integrated LCD display provides real-time system data, giving users instant visibility of key parameters such as battery voltage, charging current, and individual tracker status.

Whether you're building a large off-grid solar setup or integrating with an existing energy storage system, the Victron SmartSolar MPPT RS 450/100-MC4 ensures long-term reliability, safety, and performance.

Key Features

  • Supports high voltage solar arrays up to 450 VDC input
  • 100 A rated charge current, suitable for 48 V battery systems
  • Dual MPPT trackers for maximised energy harvest from multiple panel orientations
  • Bluetooth connectivity via VictronConnect app for local monitoring and configuration
  • Compatible with Victron Remote Management (VRM) for cloud-based access and control
  • Isolated PV terminals and metal housing for enhanced safety and durability
  • Active cooling system for consistent operation under load
  • Integrated LCD screen for real-time monitoring and diagnostics
  • Supports lead-acid and lithium battery chemistries
  • Expandable system design via VE.Can daisy-chaining with other MPPT units

Specifications

  • Brand: Victron Energy
  • Model: SmartSolar MPPT RS 450/100-MC4
  • Product Code: SCC145110512
  • Battery Voltage: 48 V
  • Rated Charge Current: 100 A
  • Maximum PV Voltage Input: 450 VDC
  • Number of MPPT Trackers: 2 (independent)
  • Connectivity: Bluetooth, VE.Can
  • Display: Integrated LCD panel
  • Dimensions: 440 x 313 x 126 mm
  • Weight: 7.9 kg
  • Operating Temperature: -40°C to +60°C
  • Monitoring Options: VictronConnect App, VRM (via GX device)
  • Remote Sensor Inputs: Yes (temperature and voltage)
  • System Integration: Supports parallel operation via VE.Can
  • Housing Material: Metal casing with covered terminals
  • Cooling System: Active, temperature-controlled fan
