Description

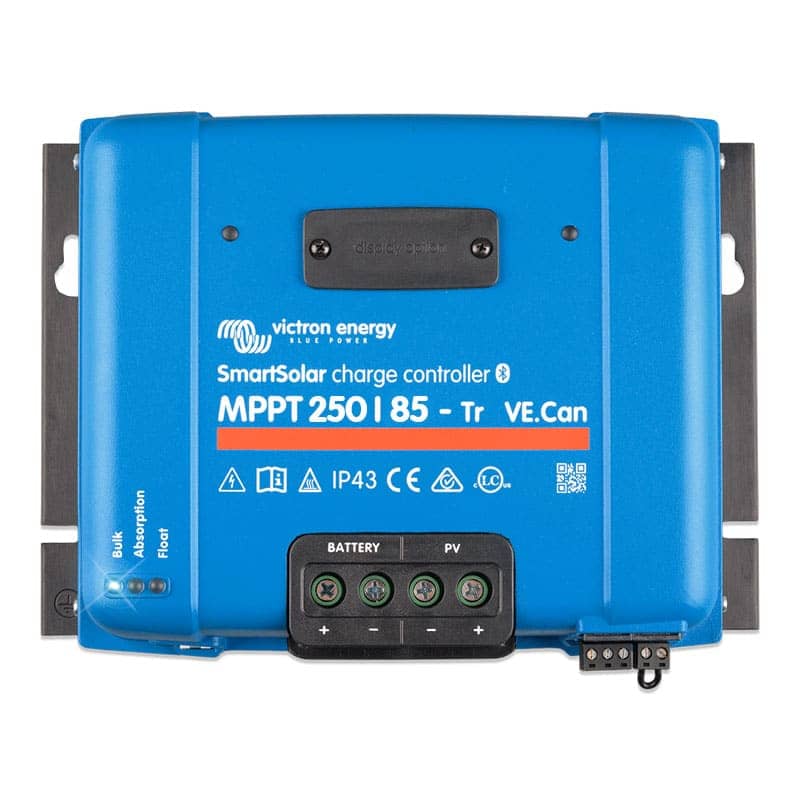

The Victron SmartSolar MPPT 250/85-Tr VE.Can is a powerful and intelligent solar charge controller designed to optimise solar energy harvesting. Featuring Ultra Fast Maximum Power Point Tracking (MPPT), it continuously adjusts to changing sunlight conditions to maximise energy conversion. This feature is particularly effective in cloudy or low-light conditions, where light intensity changes rapidly.
One of the key benefits of this controller is its ability to recharge severely depleted batteries, even operating with battery voltages as low as 0 volts, provided the battery cells are not permanently damaged.
With built-in Bluetooth, users can monitor and configure the system wirelessly via the VictronConnect App. When connected to a Victron GX device, users gain full remote access through the Victron Remote Management Portal (VRM), allowing control from anywhere in the world.
For larger solar setups, the VE.Can communication system enables multiple SmartSolar MPPT controllers to be daisy-chained, allowing them to synchronise charge stages and share data with a single GX monitoring device.
The SmartSolar MPPT 250/85-Tr VE.Can also features VE.Direct and remote on/off functionality, making it compatible with lithium battery systems and allowing integration into automated solar setups. An optional plug-in LCD display provides live system data and management directly on the unit.
Key Features
Control Your Charger Remotely
The MPPT VE.Can SmartSolar charger can be remotely controlled and configured over Bluetooth via the VictronConnect App. This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, and historical data.
Daisy Chain Additional Units
The VE.Can SmartSolar charger is equipped with CAN bus ports. This allows for communication with additional VE.Can SmartSolar chargers. The additional units are simply “daisy chained” to each other with a single RJ45 cable between the individual units.
When connected to each other, all individual VE.Can SmartSolar chargers, will synchronise their charge stages. They can also send their data, via a single cable, to a GX monitoring device.
Remote Monitoring and Control
If the GX device is connected to the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your solar charger(s).
For remote installations – even when there is no internet connection nearby – you may be able to monitor your MPPT by connecting the GlobalLink 520.
SmartSolar Control Display
The SmartSolar MPPT 250/85-Tr VE.Can charger is also equipped with a VE.Direct port like our other MPPT solar chargers. This port can be for single unit monitoring or for streetlight control. The remote on/off connector can be externally controlled by a third-party device like a lithium battery. An optional plug-in LCD display/control provides live-data, set-up and management, straight from the face of the device.
Specifications
- Brand: Victron Energy
- Manufacturer Part Number: SCC125085411
- GTIN: 8719076050896
- Voltage: 12/24/48V
- Rated Charge Current: 85A
- Nominal PV Power, 12V: 1200W
- Max. PV Short Circuit Current: 70A
- Max. PV Open Circuit Voltage: 150V absolute maximum coldest conditions 145V start-up and operating maximum
- Protection Category: IP43 (electronic components), IP22 (connection area)
- Efficiency: 99%
- Bluetooth Enabled: Yes
- Dimensions: H216 x W295 x D103mm
- Weight: 4.5Kg
- Warranty: 5 Years
- Country of Manufacture: India
