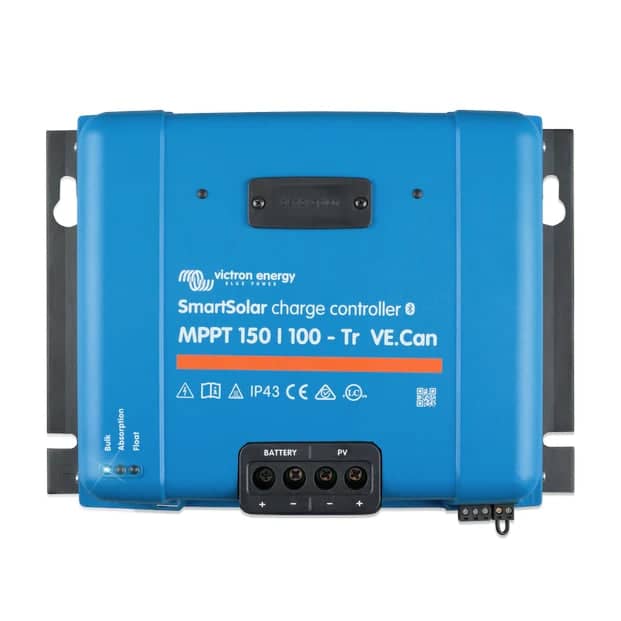

Victron Energy SmartSolar MPPT 150/100-Tr VE.Can SCC115110411

Victron part no. SCC115110411

£374.99In stock · 2 available
Usually dispatched in 1 to 2 working daysUK delivery, priced at checkout
5 years standard warrantyVictron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user. Victron warranty policy
14-day returnsOn unused standard items
Tom Alderdice
Not sure it's the right size?Free 30-minute call with Tom, or ring 01539 761 467.
Book a call
Overview

About this product

The MPPT VE.Can SmartSolar charger uses the latest and fastest technology to convert energy from a solar array into energy that optimally charges a battery banks.

The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.

Key Features

Features of the SmartSolar MPPT 150/100-Tr VE.Can

MPPT: Ultra Fast Maximum Power Point Tracking

By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.

Remote Monitoring and Control

Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in Bluetooth by pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet with a GX device, the Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both VictronConnect and VRM are free to use. For remote installations, even when there is no internet connection nearby, you may be able to monitor your MPPT by connecting the GlobalLink 520.

Control Your Charger Remotely

The MPPT VE.Can SmartSolar charger can be remotely controlled and configured over Bluetooth via the VictronConnect App. This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, and historical data.

Daisy Chain Additional Units

The VE.Can SmartSolar charger is equipped with CAN bus ports. This allows for communication with additional VE.Can SmartSolar chargers. The additional units are simply “daisy chained” to each other with a single RJ45 cable between the individual units.

When connected to each other, all individual VE.Can SmartSolar chargers, will synchronise their charge stages. They can also send their data, via a single cable, to a GX monitoring device.

Remote Monitoring and Control

If the GX device is connected to the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your solar charger(s).

For remote installations, even when there is no internet connection nearby, you may be able to monitor your MPPT by connecting the GlobalLink 520.

SmartSolar Control Display

The SmartSolar MPPT 150/100-Tr VE.Can charger is also equipped with a VE.Direct port like our other MPPT solar chargers. This port can be for single unit monitoring or for streetlight control. The remote on/off connector can be externally controlled by a third-party device like a lithium battery. An optional plug-in LCD display/control provides live-data, set-up and management, straight from the face of the device.

Specifications

  • Brand: Victron Energy
  • Manufacturer Part Number: SCC115110411
  • GTIN: 8719076050353
  • Voltage: 12/24/48V
  • Rated Charge Current: 100A
  • Nominal PV Power, 12V: 1450W
  • Max. PV Short Circuit Current: 70A
  • Max. PV Open Circuit Voltage: 150V absolute maximum coldest conditions 145V start-up and operating maximum
  • Protection Category: IP43 (electronic components), IP22 (connection area)
  • Efficiency: 98%
  • Bluetooth Enabled: Yes
  • Dimensions: H216 x W295 x D103mm
  • Weight: 4.5Kg
  • Warranty: 5 Years
  • Country of Manufacture: India
