Authorised Victron Energy InstallerVictron Energy SmartShunt 2000A/50mV IP65 SHU065220050
Victron EnergyExcellent on Google

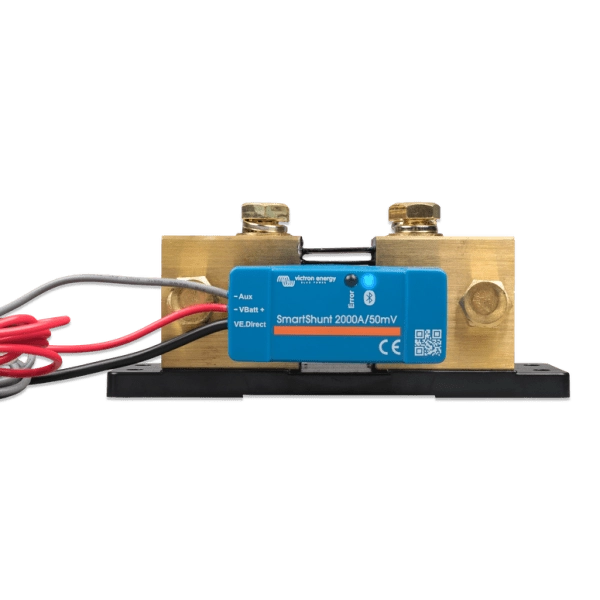

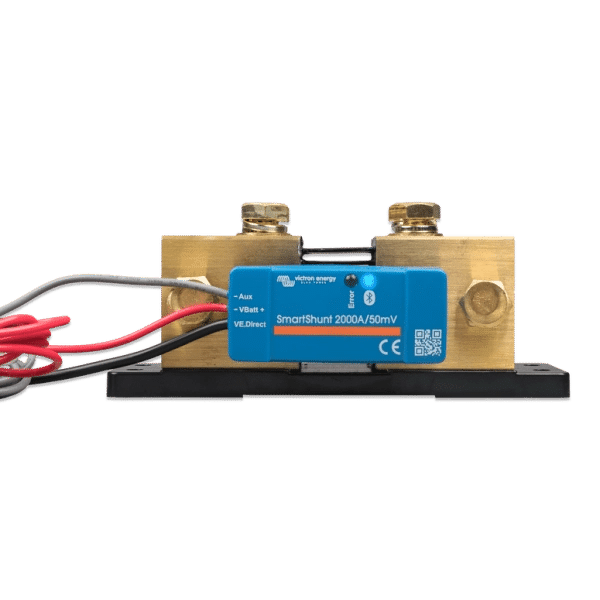

Victron Energy SmartShunt 2000A/50mV IP65 SHU065220050

Victron part no. SHU065220050

£192.99Available to order, usually dispatched in 6 to 10 working days
Usually dispatched in 6 to 10 working daysUK delivery, priced at checkout
5 years standard warrantyVictron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user. Victron warranty policy
14-day returnsOn unused standard items
Tom Alderdice
Not sure it's the right size?Free 30-minute call with Tom, or ring 01539 761 467.
Book a call
Overview

About this product

The SmartShunt IP65 2000A is an all in one battery monitor, only without a display. Your phone acts as the display. The SmartShunt connects via Bluetooth to the VictronConnect app on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.

Alternatively the SmartShunt can be connected and be read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable.

The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted.

The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring or a temperature sensor.

Differences compared to BMV-712 Battery Monitor

No programmable visual and audible alarm

No programmable relay

Why should I monitor my battery with the SmartShunt IP65 2000A?

Batteries are used in a wide variety of applications, mostly to store energy for later use. But how much energy is stored in the battery? No one can tell by just looking at it. The service life of batteries depends on many factors. Battery life may be shortened by under-charging, over-charging, excessively deep discharges, excessive charge or discharge currents, and by high ambient temperature. Monitoring the battery with a battery monitor will give important feedback to the user so that remedial measures can be taken when necessary. Doing this will extend battery life and the battery monitor will quickly pay for itself.

The VictronConnect app

The VictronConnect app is essential to set up and to monitor the SmartShunt IP65 2000A.

The app can connect to the battery monitor via:

• Bluetooth

• USB, via the optional VE.Direct to USB interface

The app is available for the following platforms:

• Android

• Apple iOS (Note that USB is not supported, it is only possible to connect via Bluetooth)

• MacOs

• Windows (Note that Bluetooth is not supported, it is only possible to connect via USB).

The VictronConnect app can be downloaded from app stores or from the VictronConnect product page.

Key Features

Bluetooth Connectivity:
The SmartShunt connects wirelessly via Bluetooth to the VictronConnect app, allowing you to track essential battery parameters in real-time, such as:

  • State of Charge (SOC)
  • Time to Go
  • Historical Data
  • Battery Voltage and Current

VE.Direct Compatibility:
For more complex systems, the SmartShunt can also be linked to a GX device using a VE.Direct cable for seamless integration into your overall system.

IP65 Rating:
The SmartShunt IP65 rating makes it ideal for outdoor and harsh environments, offering protection against dust and water jets. This version of the SmartShunt provides enhanced durability, ensuring that it can be used in challenging conditions, such as in marine or off-grid applications.

Auxiliary Inputs for Additional Monitoring:

  • The VE.Direct port allows for the monitoring of a second battery.
  • Midpoint monitoring of a battery bank.
  • Temperature monitoring with an optional temperature sensor.

Battery Life Optimisation:
By using the SmartShunt, you can extend your battery’s lifespan by preventing issues such as:

  • Undercharging
  • Overcharging
  • Excessive deep discharges
  • High ambient temperature

The continuous monitoring ensures timely feedback on the health of your battery, enabling users to take corrective actions before significant damage occurs.

No Alarms or Relays:
Unlike the BMV-712 model, the SmartShunt does not feature programmable visual/audible alarms or a relay. This makes it a simpler, more streamlined option for users who prefer a more basic battery monitoring solution.

Specifications

  • Model Number: SHU065220050
  • Current Rating: 2000A (continuous)
  • Voltage Range: 8 to 70V
  • Protection Category: IP65 (dust and water-resistant)
  • Bluetooth Enabled: Yes
  • Auxiliary Inputs: Second battery, midpoint, or temperature sensor
  • Dimensions: H68 x W120 x D76mm
  • Weight: 0.3 kg
  • Warranty: 5 Years
  • Country of Manufacture: Malaysia
