Description

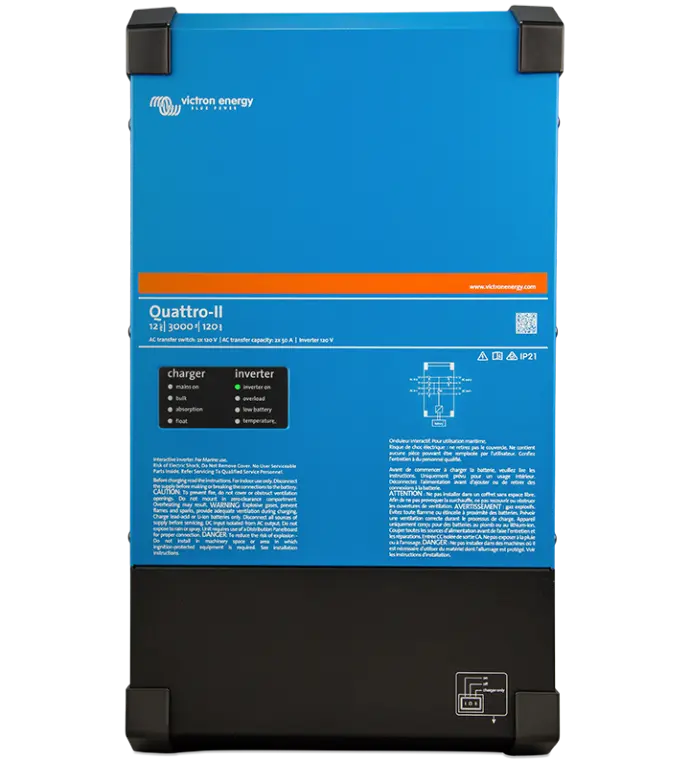

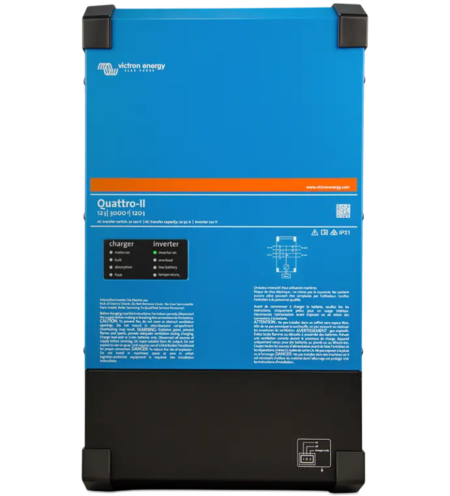

The Victron Quattro-II 12/3000/120-50/50 2x120V combines a 3000VA pure sine wave inverter with a 120A adaptive battery charger, making it the ideal solution for split-phase power systems. Its dual AC inputs allow it to seamlessly manage power from shore connections or generators, automatically switching to the most reliable source.
With PowerAssist technology, the Quattro-II prevents overloading of shore or generator power by supplementing energy from the battery when needed. In inverter mode, it ensures a stable 120V output and can operate in parallel or three-phase configurations, making it highly scalable for larger power systems.
Additionally, when connected to a Victron GX device (e.g., Cerbo GX), the system can be monitored and controlled remotely via the Victron VRM portal, providing real-time insights and management options from anywhere in the world.
Key Features
- Dual AC Inputs & Outputs – Seamlessly switches between shore power and generator inputs for uninterrupted operation.
- PowerAssist Technology – Prevents AC source overload by reducing battery charging or supplementing power from the battery.
- Split-Phase & Single-Phase Output – Delivers stable 120V output and supports 240V pass-through for large loads.
- Heavy Load Protection – Prioritises critical loads and prevents battery discharge when running power-hungry devices.
- Parallel & Three-Phase Capability – Expand your power system with multiple unit configurations for greater capacity.
- Advanced Inverter/Charger Features – Includes PowerControl, Input Current Limit, and intelligent battery charging.
- Battery Compatibility – Works with a wide range of battery types, including LiFePO4.
- Remote Monitoring & Control – Access system data and settings via the Victron VRM portal and app.
Specifications
- Brand: Victron Energy
- Model Number: QUA122305130
- Voltage: 12V
- Continuous Output Power: 3000VA
- Peak Power: 6000W
- Output AC Voltage: 120V (Single-Phase)
- Split-Phase Compatibility: Yes, 120/240V pass-through
- Transfer Switch: 50A
- Battery Charge Current: 120A
- Efficiency: 95%
- Protection Category: IP21
- Bluetooth Compatible: No
- Dimensions (HxWxD): 499 x 268 x 141mm
- Weight: 19Kg
- Warranty: 5 Years
- Country of Manufacture: India
