Description

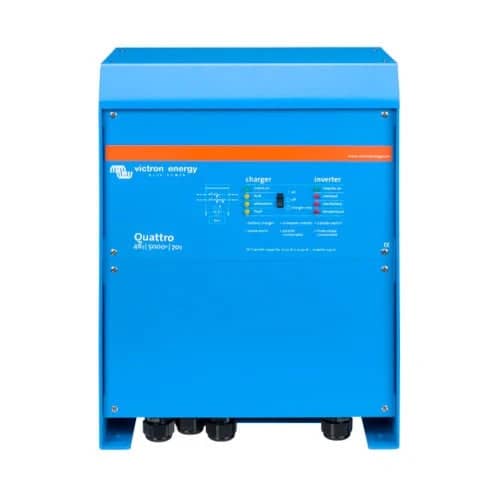

The Victron Quattro 48/5000/70-100 combines a 5000VA pure sine wave inverter with a 70A adaptive battery charger, making it an ideal choice for backup power, off-grid setups, and hybrid energy systems. It can seamlessly switch between two AC power sources, such as shore power and a generator, ensuring continuous operation.
With PowerAssist technology, the Quattro prevents AC source overload by automatically adjusting battery charging or boosting power output when needed. Additionally, it supports parallel and three-phase operation, allowing up to six units to be combined for increased capacity.
When integrated with a GX device (e.g., Cerbo GX), the Quattro offers full remote monitoring and control via the Victron VRM portal, enabling system management from anywhere in the world.
Key Features
Features of the Quattro 48/5000-70-100
Two AC Inputs & two AC Outputs
The Quattro can be connected to two independent AC sources, for example shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source. The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Quattro takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, such as air-conditioning or a water heater can be connected to this output.
Unique PowerAssist feature
The Quattro will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.
Virtually unlimited power thanks to parallel operation
Up to 6 Quattros can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.
Remote Monitoring and Control
When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Quattro and system or systems’ locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Quattro to auto starting a backupgenerator and more…
Specifications
- Brand: Victron Energy
- Manufacturer Part Number: QUA485021010
- GTIN: 8719076024231
- Voltage: 48V
- Cont. output power at 25ºC: 5000VA
- Peak Power: 10000W
- Output AC Voltage: 230V
- Transfer Switch: 100A
- Charge Current House Battery: 70A
- Protection Category: IP21
- Efficiency: 95%
- Bluetooth Compatible: No
- Dimensions: H444 x W328 x D240mm
- Weight: 30Kg
- Warranty: 5 Years
- Country of Manufacture: India
