Description

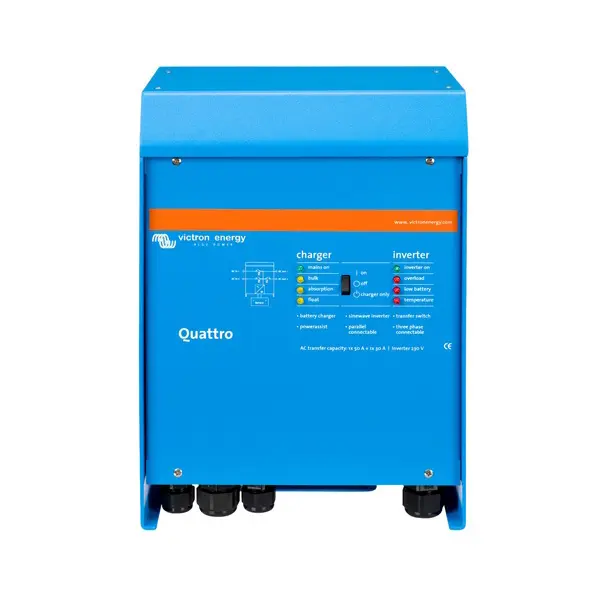

The Victron Energy Quattro 48/15000/200-100/100 is the ideal choice for users who need high-performance power management. It combines two AC inputs and two AC outputs to ensure seamless power switching, especially during grid failures or when shore or generator power is disconnected. With less than 20 milliseconds of transfer time, the Quattro ensures uninterrupted power to connected loads, including sensitive equipment like computers.
PowerAssist technology compensates for short-term peak power requirements, using battery power to boost generator or mains supply when needed, and then recharges the battery once the load reduces. The PowerControl feature manages limited generator or grid power by prioritising essential loads and using available spare capacity for charging.
Whether used in off-grid, grid-tied, or hybrid solar energy systems, the Quattro offers a range of integration options. It can support three-phase power and be configured for parallel operation, allowing users to scale their system for larger applications. Remote monitoring and configuration are available via Victron’s VRM (Victron Remote Management) platform, and local monitoring can be done through devices like the Cerbo GX or smartphone apps.
Key Features
- Two AC Inputs: Connects to independent AC sources like the grid or generators, automatically selecting the active source
- Fast Transfer: Less than 20 milliseconds for seamless transition during grid failure or power disconnection
- Two AC Outputs: Main output with no-break functionality; second output active only when AC is available
- Three-phase Capability: Supports up to three units for three-phase output; up to 4 sets in parallel for 144 kW / 180 kVA power
- PowerControl: Current limit on each AC input to prevent overloading of mains or generators
- PowerAssist: Boosts generator or mains power using battery power for peak demand
- Grid-Connected and Off-Grid: Can be used in off-grid systems or solar energy applications, ensuring AC power even during grid failure
- Easy System Configuration: DIP switches for stand-alone applications; VE.Bus Quick Configure for parallel and three-phase setups
- Remote Monitoring and Configuration: Via Victron VRM, Cerbo GX, or other GX devices; mobile app support (Bluetooth Smart)
- Wide Application: Ideal for off-grid, grid-tied, self-consumption, and solar integration
Specifications
- Model: Quattro 48/15000/200-100/100 277V VE.Bus
- Power Output: 15000VA / 15000W
- Input Voltage (AC): 90-265V AC (two AC inputs)
- Output Voltage (AC): 277V AC
- Frequency: 50 Hz or 60 Hz (selectable)
- Phase Configuration: Three-phase capable
- Battery Voltage: 48V DC
- Charging Capacity: 200A (maximum charging)
- Efficiency: 93% (at full load)
- Transfer Time: Less than 20 milliseconds
- PowerAssist: Yes (Boosts mains/generator power with battery)
- PowerControl: Yes (Current limit for generator/grid power)
- Remote Monitoring: Victron VRM, Cerbo GX, Bluetooth, USB, RS232
- Parallel Operation: Yes (supports up to 4 units for high power)
- Weight: 44 kg
- Dimensions (HxWxD): 385 x 650 x 265 mm
- Safety Protections: Overload, short-circuit, and temperature protection
- Warranty: 5 years
