Description

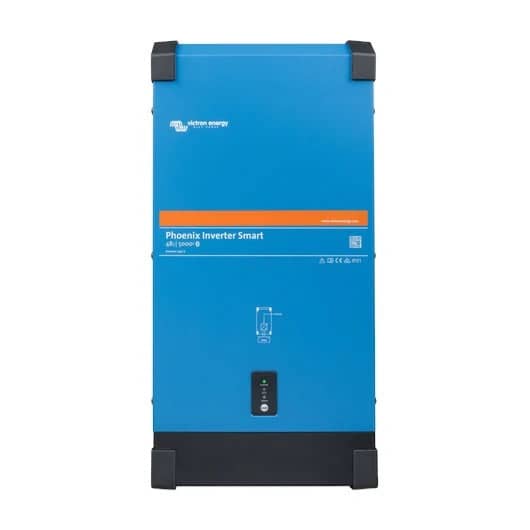

The Victron Phoenix Smart Inverter 48/5000 is a high-performance inverter tailored for high-power applications requiring 5000VA continuous power and 10,000W peak surge capacity. Built on the proven Phoenix inverter platform, it ensures exceptional efficiency with 96% performance, while delivering clean sine-wave output and stable voltage. Ideal for applications in remote locations, this inverter is perfect for powering high-wattage appliances in off-grid homes, boats, caravans, and mobile setups.
With Bluetooth built-in, it’s easy to configure and monitor your system via the VictronConnect app, allowing for adjustments to settings such as low battery voltage alarms, eco-mode, and output voltage. The inverter also includes a VE.Direct communication port, enabling connection to a computer for deeper monitoring and configuration. The ECO mode and dynamic cut-off functions further enhance its energy efficiency, making it the perfect solution for managing power usage in off-grid systems.
Built to withstand harsh conditions, the Phoenix Smart Inverter is short circuit proof, overload protected, and equipped with overheat protection. Its ability to handle high start-up power makes it ideal for devices such as electric tools, LED lighting, and halogen lamps. With remote on/off capabilities and automatic transfer switch compatibility, the inverter offers ultimate control and flexibility over your power systems.
Key Features
Features of the Phoenix 48/5000 Smart
Bluetooth built-in: fully configurable with a tablet or smartphone
- Low battery voltage alarm
- Low battery voltage cut-off and restart levels
- Dynamic cut-off: load dependent cut-off level
- Output voltage: 210 – 245V
- Frequency: 50 Hz or 60 Hz
- ECO mode on/off and ECO mode sense level
- Alarm relay
Monitoring:
- In- and output voltage, load and alarms
VE.Direct communication port
The VE.Direct port can be connected to a computer (VE.Direct to USB interface cable needed) to configure and monitor the same parameters.
Proven reliability
The full bridge plus toroidal transformer topology has proven its reliability over many years. The Phoenix Smart Inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.
High start-up power
Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.
ECO mode
When in ECO mode, the inverter will switch to standby when the load decreases below a preset value. Once in standby the inverter will switch on for a short period every 2,5 seconds (adjustable). If the load exceeds the preset level, the inverter will remain on.
Remote on/off
A remote on/off switch or relay contact can be connected to a two pole connector. Alternatively, the H terminal (left) of the two pole connector can be switched to battery plus, or the L terminal (right) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example).
To transfer the load to another AC source: the automatic transfer switch
For our low power inverters we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption. Alternatively use a MultiPlus with built-in transfer switch.
Control over system
Want to have perfect control over your system from wherever you are whilst using your Phoenix Inverter 48/5000 Smart, why not have a look at the Cerbo GX. Simply connect through the Victron Remote Management (VRM) portal, or access directly, using the separate GX Touch, a MFD or the VictronConnect App thanks to its added Bluetooth capability. This latest addition to the GX-range combines all the best of connectivity, redefining smart power solutions in every way.
Specifications
- Brand: Victron Energy
- Manufacturer Part Number: PIN482500000
- GTIN: 8719076047940
- Voltage: 48V
- Cont. Output Power at 25°C: 5000VA
- Peak Power: 10000W
- Output AC Voltage: 230V
- Protection Category: IP21
- Efficiency: 96%
- Bluetooth Enabled: Yes
- Dimensions: H555 x W295 x D160mm
- Weight: 28Kg
- Warranty: 5 Years
- Country of Manufacture: India
