Description

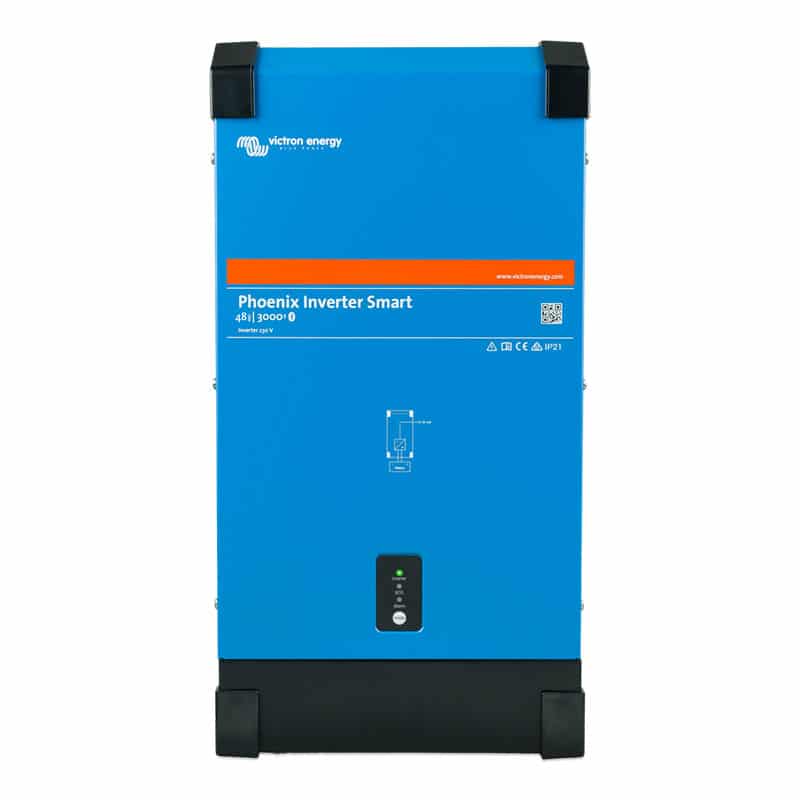

The Victron Phoenix Smart Inverter 48/3000 is a robust and efficient inverter designed to meet the power needs of demanding off-grid applications. Operating on a 48V DC battery system, this inverter delivers 3000VA continuous output and a 6000W peak power for high-startup devices, such as electric tools, LED lighting, and halogen lamps. Its innovative design incorporates a toroidal transformer to ensure stable voltage, high-quality sine-wave output, and high surge capacity.
Built on the proven Phoenix inverter platform, the Phoenix Smart Inverter 48/3000 includes Bluetooth connectivity, allowing for easy configuration and monitoring via the VictronConnect app. Additional features include ECO mode for energy-saving operation, low battery voltage alarms, and dynamic cut-off for load-dependent shutdown, ensuring the system operates efficiently and safely.
With a 95% efficiency rate, short circuit protection, and built-in protection against overheating, this inverter is a reliable solution for a variety of applications. It is easy to install with accessible terminals and can be paired with an automatic transfer switch for seamless AC source switching.
Key Features
Features
Bluetooth built-in: fully configurable with a tablet or smartphone
- Low battery voltage alarm
- Low battery voltage cut-off and restart levels
- Dynamic cut-off: load dependent cut-off level
- Output voltage: 210 – 245V
- Frequency: 50 Hz or 60 Hz
- ECO mode on/off and ECO mode sense level
- Alarm relay
Monitoring:
- In- and output voltage, load and alarms
VE.Direct communication port
The VE.Direct port can be connected to a computer (VE.Direct to USB interface cable needed) to configure and monitor the same parameters.
Proven reliability
The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.
High start-up power
Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.
ECO mode
When in ECO mode, the inverter will switch to standby when the load decreases below a preset value. Once in standby the inverter will switch on for a short period every 2,5 seconds (adjustable). If the load exceeds the preset level, the inverter will remain on.
Remote on/off
A remote on/off switch or relay contact can be connected to a two pole connector. Alternatively, the H terminal (left) of the two pole connector can be switched to battery plus, or the L terminal (right) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example).
To transfer the load to another AC source: the automatic transfer switch
For our low power inverters we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption. Alternatively use a MultiPlus with built-in transfer switch.
Specifications
- Brand: Victron Energy
- Manufacturer Part Number: PIN482300000
- Voltage: 48
- VA: 3000
- Peak Power (VA): 6000
- Max Efficiency: 95%
- IP Rating: IP21
- Dimensions (Including Terminals): H485 x W285 x H150
- Weight (kg): 19
- Warranty: 5 Years
Datasheets
