Description

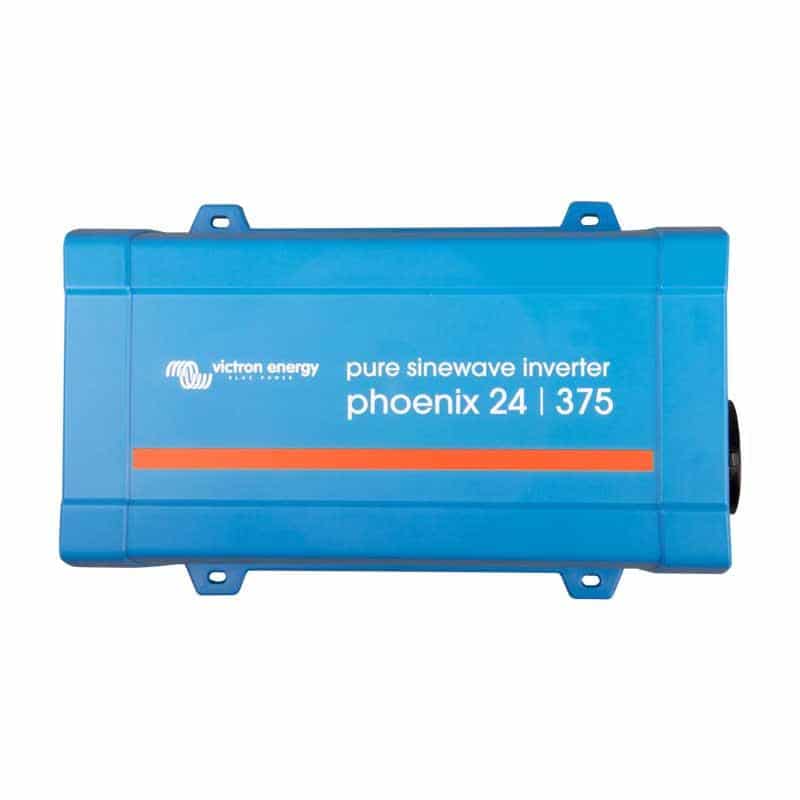

The Victron Phoenix Inverter 24/375 120V VE.Direct NEMA 5-15R is designed to provide 120V AC power from a 24V battery system, making it perfect for off-grid setups, RVs, boats, and emergency power solutions. Built with proven full bridge plus toroidal transformer technology, it ensures reliable, pure sine wave output for sensitive electronics.
The VE.Direct communication port allows real-time monitoring and configuration via a USB interface for PCs or a Bluetooth dongle for smartphones and tablets. Users can adjust voltage, frequency, battery cut-off levels, and ECO mode settings for optimized performance.
For energy efficiency, the ECO mode reduces power consumption by switching the inverter to standby when the load drops below 15W, restarting only when necessary.
This model includes high start-up power for LED power converters, halogen lamps, and electric tools, ensuring smooth operation. It also supports remote on/off control for easy system integration.
For seamless power transfer, it is compatible with the Filax Automatic Transfer Switch, which ensures a fast switchover time (<20ms) to keep computers and sensitive electronics running smoothly.
Key Features
✔ Pure Sine Wave Output – Provides clean and stable power for sensitive electronics.
✔ VE.Direct Communication Port – Enables real-time monitoring & configuration via USB or Bluetooth.
✔ Fully Configurable Settings:
- Low battery voltage alarm & cut-off levels
- Output voltage range: 114V – 126V
- Frequency: 60Hz
- ECO mode activation & sensitivity settings
✔ High Start-Up Power – Handles demanding loads such as LED power converters, halogen lamps, and electric tools.
✔ ECO Mode for Energy Savings – Automatically switches to standby when load drops below 15W.
✔ Remote On/Off Control – Can be activated via external switch or battery connection.
✔ Proven Reliability – Short circuit proof, overload protection, and thermal protection.
✔ LED Diagnostics – Provides real-time status indicators.
✔ Compact and Easy to Install – No special tools required, with screw terminal DC connections.
✔ Compatible with Filax Automatic Transfer Switch – Ensures seamless power switching for uninterrupted operation.
✔ Multiple Output Socket Options – Available with Schuko, UK, AU/NZ, IEC-320, and NEMA 5-15R sockets.
Specifications
- Feature: Specification
- Brand: Victron Energy
- Model: Phoenix Inverter 24/375 120V VE.Direct
- Part Number: PIN243750500
- GTIN: (Check with manufacturer)
- Voltage: 24V DC
- Continuous Output Power: 375VA / 300W
- Peak Power: 700W
- Output Voltage: 120V AC
- Frequency: 60Hz
- Efficiency: 90% – 94%
- VE.Direct Communication: Yes (USB & Bluetooth compatible)
- Remote Monitoring: Yes, via VE.Direct & Bluetooth
- Protection Features: Short circuit, overload, thermal
- ECO Mode: Yes (min load: 15W, adjustable settings)
- Remote On/Off Control: Yes
- Output Socket: NEMA 5-15R
- DC Connection: Screw terminals (no special tools needed)
