Description

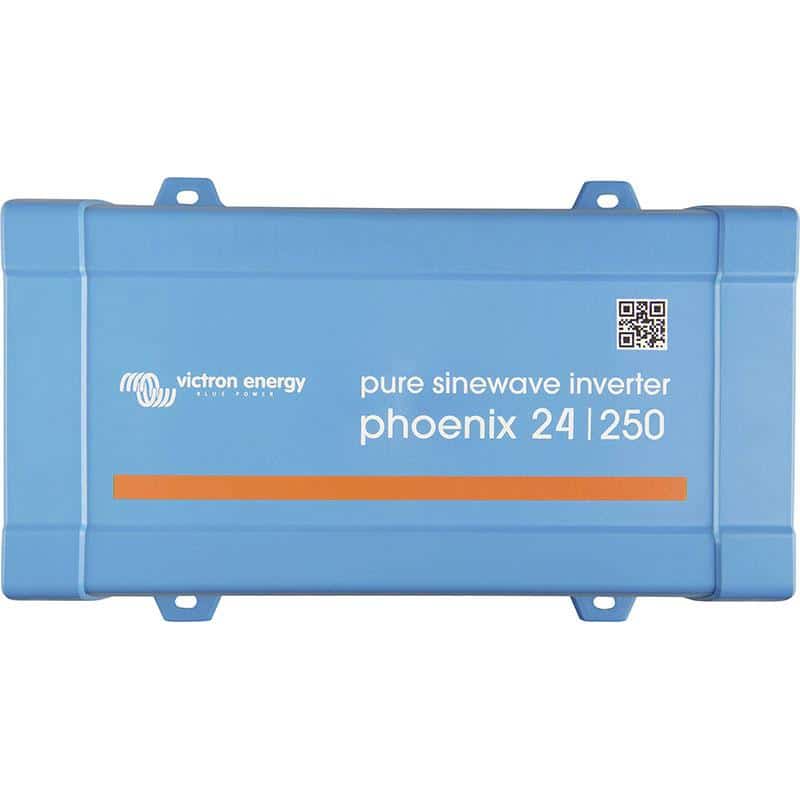

The Victron Phoenix Inverter 24/250 120V VE.Direct NEMA GFCI is designed to power 120V AC appliances from 24V DC sources, ideal for use in off-grid systems, caravans, boats, or mobile applications. Featuring a GFCI outlet, this inverter offers an added layer of safety by cutting off power if a ground fault is detected, reducing the risk of electrical shocks.
Equipped with VE.Direct communication port, this inverter allows remote monitoring and configuration via Bluetooth or USB interface, enabling convenient access to parameters such as input/output voltage, load percentage, and alarm settings. It also includes ECO mode, which helps save energy by switching the inverter to standby when the load is below a preset value.
The high start-up power capability of this inverter ensures it can power loads requiring high inrush currents, such as LED power converters and small electric tools. It is designed for reliability with overload protection, short circuit safeguards, and overheating protection, ensuring safe operation in a variety of conditions.
Key Features
- GFCI (Ground Fault Circuit Interrupter): Provides enhanced safety by protecting against electrical faults that could lead to shocks or electrocution.
- VE.Direct Communication Port: Allows for remote monitoring and configuration through Bluetooth or a computer (USB interface needed).
- ECO Mode: The inverter enters standby mode when the load drops below a preset level, reducing energy consumption.
- High Start-Up Power: Can power devices with high inrush currents such as LED converters and small electric tools.
- Low Battery Protection: Includes adjustable low voltage cut-off and alarm settings to protect the battery from deep discharge.
- Remote On/Off: Can be controlled remotely through a two-pole connector or battery terminal switch.
- LED Diagnosis: Built-in LED indicator for status and troubleshooting.
- Automatic Transfer Switch Compatibility: Compatible with Filax Automatic Transfer Switch, allowing for seamless switchover between AC sources (less than 20 milliseconds).
Specifications
- Feature: Specification
- Brand: Victron Energy
- Manufacturer Part Number: PIN242510510
- Voltage: 24V DC
- Continuous Output Power: 250VA
- Peak Power: 500VA
- Output Voltage: 120V AC
- Frequency: 50 Hz or 60 Hz
- ECO Mode: On/Off, with adjustable sense level
- Communication: VE.Direct Port (Bluetooth Smart or USB Interface required)
- Dimensions (H x W x D): 170 x 142 x 70mm
- Weight: 2.5 kg
- Warranty: 5 years
