Description

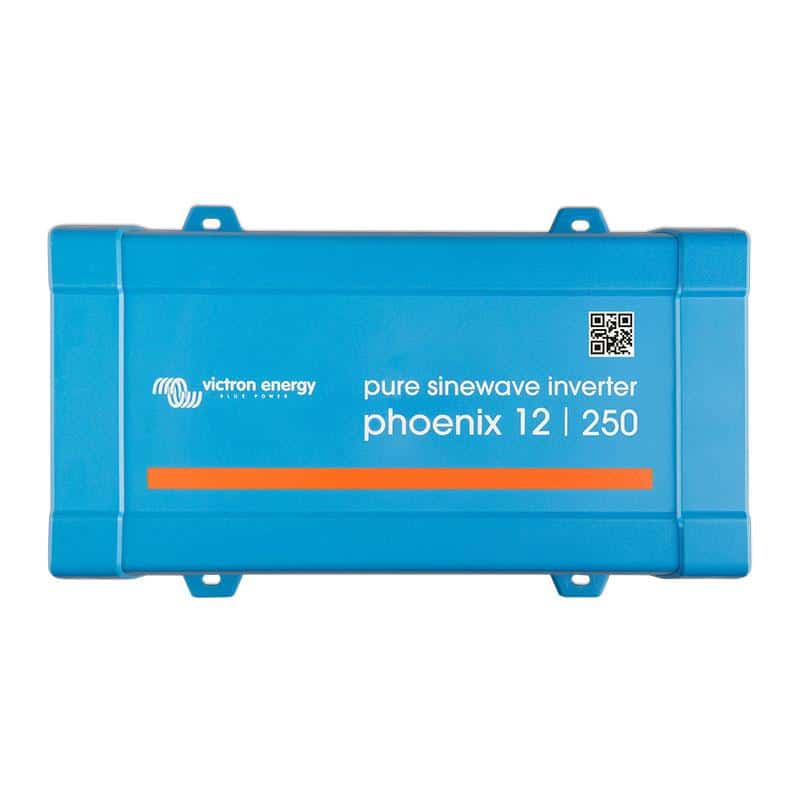

The Victron Phoenix Inverter 12/250 120V VE.Direct is engineered to provide pure sine wave output for running sensitive electronics efficiently. This inverter is ideal for vehicles, boats, RVs, and off-grid applications, where reliable and stable power conversion is essential.
Equipped with a VE.Direct communication port, the inverter allows seamless monitoring and configuration via a computer (USB adapter required) or Apple/Android devices (with a Bluetooth dongle). Users can set voltage cut-off levels, ECO mode settings, frequency, and alarms remotely for better control.
The high start-up power capability ensures smooth operation for devices requiring initial surge power, such as LED power converters, halogen lamps, and electric tools. The ECO mode helps reduce power consumption by automatically switching the inverter to standby when the load drops below a preset level.
Additionally, it supports a remote on/off switch and offers LED indicators for diagnostics. For uninterrupted power transfer, it is compatible with the Filax Automatic Transfer Switch, ensuring seamless switching between power sources.
Key Features
Fully configurable:
Low battery voltage alarm trip and reset levels
Low battery voltage cut-off and restart levels
Dynamic cut-off: load dependent cut-off level
Output voltage 210 – 245V
Frequency 50 Hz or 60 Hz
ECO mode on/off and ECO mode sense level
Monitoring:
In- and output voltage, % load and alarms
Proven reliability
The full bridge plus toroidal transformer topology has proven its reliability over many years.
The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.
High start-up power
Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.
ECO mode
When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.
Remote on/off
A remote on/off switch can be connected to a two pole connector, or between battery plus and the
left hand contact of the two pole connector.
LED diagnosis
Please see manual for a description.
To transfer the load to another AC source: the automatic transfer switch
For our low power inverters we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption.
Available with different output sockets
Schuko, UK, AU/NZ, IEC-320, Nema 5-15R
DC connection with screw terminals
No special tools needed for installation
Specifications
- Feature: Specification
- Brand: Victron Energy
- Model: Phoenix 12/250 VE.Direct
- Manufacturer Part Number: PIN122510500
- Weight: 1.8 kg
- Dimensions (L x W x H): 86 x 165 x 260 mm
- Input Voltage: 9.2V – 17V DC
- Output Voltage: 120V AC
- Continuous Output Power: 250VA
- Peak Output Power: 400W
- Frequency: 50Hz – 60Hz (Selectable)
- Operating Temperature Range: -40°C to +65°C
- Output Waveform: Pure Sine Wave
- DC Connection: Screw Terminals
- Output Socket: NEMA 5-15R (Standard US Outlet)
- Warranty: 5 Years
