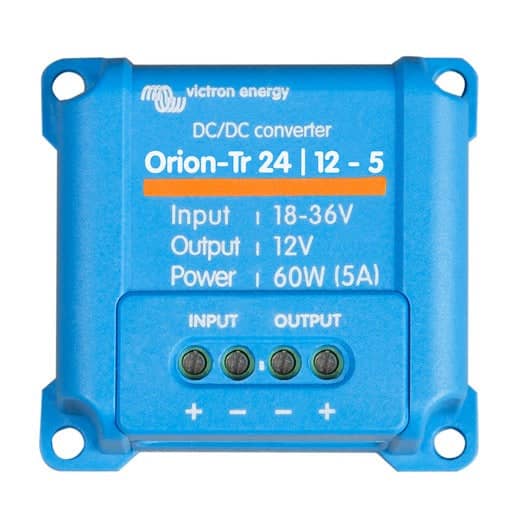

Victron Energy Orion-Tr DC-DC converter 24/12-5 (60W) ORI241205200R

Victron part no. ORI241205200R

£12.19Available to order, usually dispatched in 6 to 10 working days
Usually dispatched in 6 to 10 working daysUK delivery, priced at checkout
5 years standard warrantyVictron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user. Victron warranty policy
14-day returnsOn unused standard items
Tom Alderdice
Not sure it's the right size?Free 30-minute call with Tom, or ring 01539 761 467.
Book a call
Overview

About this product

The Victron Orion-Tr 24/12-5 (60W) DC-DC Converter (model ORI241205200R) is a high-performance solution for converting 24V down to 12V, providing a 5A output (60W). This compact and efficient converter is perfect for various applications where you need reliable power conversion, such as marine, off-grid, and automotive environments.

Key Features

  • High Efficiency: The converter uses synchronous rectification, ensuring an efficiency exceeding 95% at full load.
  • IP43 Protection: The unit is designed with IP43 protection, making it suitable for environments with dust and moisture (when installed with screw terminals oriented downwards).
  • Screw Terminals: Easy installation with screw-type terminals, eliminating the need for special tools.
  • Remote On/Off: The remote on/off function allows the unit to be controlled with a low-power switch, or connected to an engine run/stop switch, reducing the need for high-current wiring.
  • Parallel Capabilities: Multiple units can be connected in parallel to increase output current, with no limit to the number of units that can be added.
  • Short Circuit Proof: All models are short-circuit-proof, ensuring safe and reliable operation.

Specifications

  • Brand: Victron Energy
  • Manufacturer Part Number: ORI241205200R
  • GTIN: 8719076022855
  • Voltage: 24/12V
  • Continuous Output Current: 5A
  • Protection Category: IP43
  • Efficiency: 95%+ (Full Load)
  • Bluetooth Enabled: No
  • Dimensions (HxWxD): 100mm x 65mm x 45mm
  • Weight: 0.3kg
  • Warranty: 5 Years
  • Country of Manufacture: India
