Description

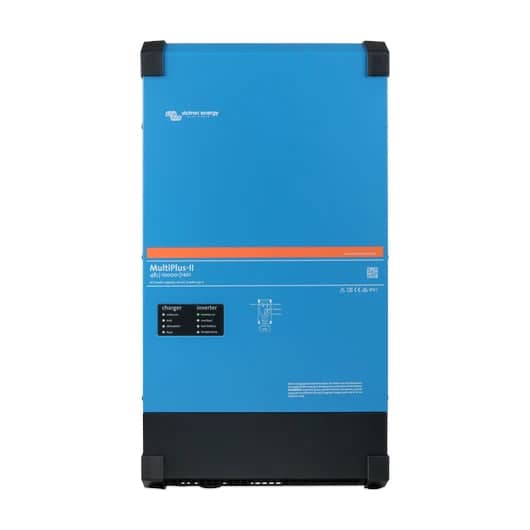

The Victron MultiPlus-II 48/10000/140-100 230V is a versatile and powerful inverter/charger that combines the functionalities of the MultiPlus and MultiGrid series. It is designed to provide reliable power solutions for off-grid, grid-tied, and hybrid energy systems, making it an ideal choice for residential, commercial, and industrial applications.
This model is particularly suited for Energy Storage Systems (ESS), enabling seamless integration with MPPT Solar Chargers and Grid-tie PV Inverters to maximize self-consumption and energy efficiency. It offers a robust solution for users seeking uninterrupted power supply, advanced energy management, and remote monitoring capabilities.
Key Features
Features of the MultiPlus-II 48/10000/140-100
PowerAssist
The MultiPlus-II will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.
ESS: Energy Storage Systems
The MultiPlus-II is the key component in a Victron ESS system, providing the flexibility to combine with MPPT Solar Chargers or Grid-tie PV Inverters. For examples and more detailed information see the ESS (Energy Storage System) manual.
Uninterrupted AC power (UPS function)
In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.
Remote Monitoring and Control
When coupled with a Cerbo GX you can monitor and control your MultiPlus-II 48/10000 and system or systems’ locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backupgenerator and more…”
Specifications
- Brand: Victron Energy
- Manufacturer Part Number: PMP483105000
- GTIN: 8719076044956
- Voltage: 48V
- Cont. Output Power at 25°C: 10000VA
- Peak Power: 18000W
- Output AC Voltage: 230V
- Transfer Switch: 100A
- Max. AC Input Current: 100A
- Max. Battery Charge Current: 140A
- Protection Category: IP22
- Efficiency: 96%
- Bluetooth Compatible: Yes
- Dimensions: H642 x W363 x D206mm
- Weight: 49Kg
- Warranty: 5 Years
- Country of Manufacture: India
