Description

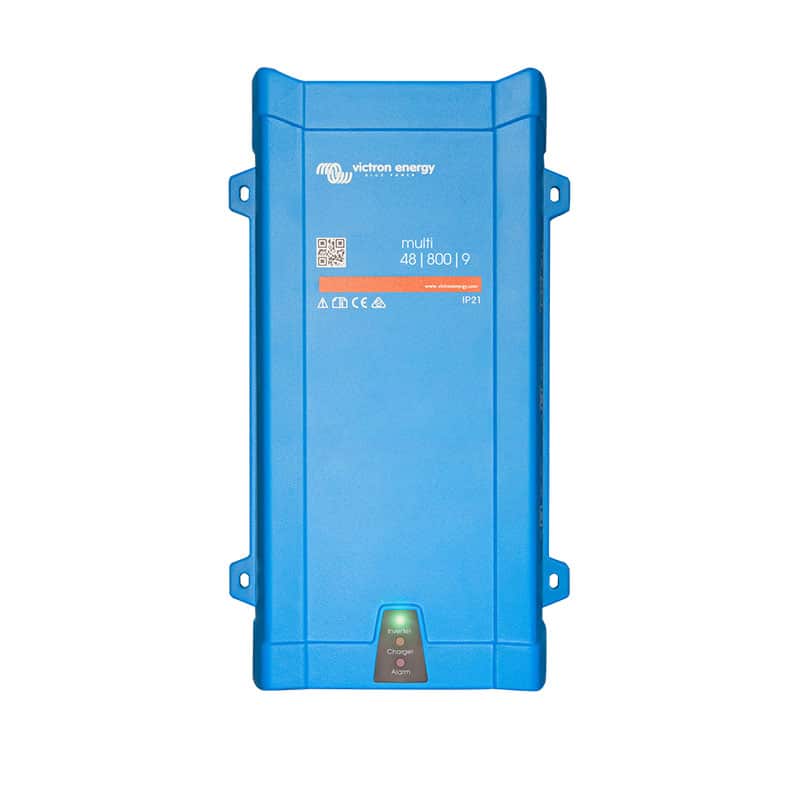

The Victron MultiPlus 48/800 combines an inverter and battery charger in one unit, offering a reliable solution for smaller off-grid or hybrid power systems. Its true sine wave inverter provides clean, stable power suitable for sensitive electronics. With adaptive charging technology, it optimizes the charging of connected batteries, extending their lifespan and performance.
In case of grid failure or when shore or generator power is lost, the MultiPlus automatically activates, taking over power supply to connected loads. This happens in less than 20 milliseconds, making it ideal for critical applications where any interruption would be unacceptable, such as computers or medical equipment.
The PowerAssist feature helps to manage power usage by supplementing limited shore or generator power with battery power when demand exceeds available power. This ensures that systems remain operational during peak loads, and any spare power is used to recharge the battery when the load decreases.
For flexible scalability, the MultiPlus supports parallel operation, allowing up to six units to be connected for higher output power. Additionally, three-phase operation can be achieved by configuring three units together.
With the remote monitoring and control functionality, users can manage their system via the VRM app or VRM portal. This allows full control locally or remotely, providing convenience and flexibility, whether at home or on the go.
Key Features
Features of the MultiPlus 48/800
Uninterrupted AC power (UPS function)
In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.
Remote Monitoring and Control
When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Multi and system or systems’ locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backupgenerator and more…”
Parallel Operation and Three Phase Capability
Up to six Multis can operate in parallel to achieve higher power output.
In addition to parallel connection, three units can be configured for three-phase output
PowerAssist – Boosting the Capacity of Shore or Generator Power
This feature takes the principle of PowerControl to a further dimension. It allows the MultiPlus to supplement the capacity of the alternative source. Where peak power is so often required only for a limited period, the MultiPlus will make sure that insufficient shore or generator power is immediately compensated for by power from the battery. When the load reduces, the spare power is used to recharge the battery.
Specifications
- Brand: Victron Energy
- Manufacturer Part Number: PMP481800000
- GTIN: 8719076038245
- Voltage: 48V
- Cont. Output Power at 25°C: 800VA
- Peak Power: 1600W
- Output AC Voltage: 230V
- Transfer Switch: 16A
- Charge Current House Battery: 9A
- Protection Category: IP21
- Efficiency: 94%
- Bluetooth Compatible: No
- Dimensions: H360 x W240 x D100mm
- Weight: 6.4Kg
- Warranty: 5 Years
- Country of Manufacture: India
