Authorised Victron Energy InstallerVictron Energy MultiPlus 12/1600/70-16 230V VE.Bus   PMP122160000
Victron EnergyExcellent on Google

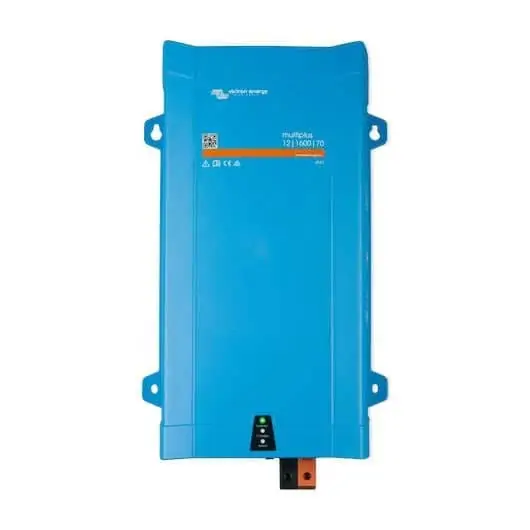

Victron Energy MultiPlus 12/1600/70-16 230V VE.Bus PMP122160000

Victron part no. PMP122160000

£455.99In stock · 10 available
Usually dispatched in 1 to 2 working daysUK delivery, priced at checkout
5 years standard warrantyVictron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user. Victron warranty policy
14-day returnsOn unused standard items
Tom Alderdice
Not sure it's the right size?Free 30-minute call with Tom, or ring 01539 761 467.
Book a call
Overview

About this product

The Victron MultiPlus 12/1600/50-16 230V VE.Bus is a highly efficient and powerful inverter charger designed to replace the earlier MultiPlus Compact range. This unit combines a true sine wave inverter, a sophisticated battery charger with adaptive charge technology, and a high-speed AC transfer switch, all in one compact enclosure, delivering exceptional performance and reliability.

The UPS function ensures that in the event of a grid failure, or when shore or generator power is disconnected, the inverter within the MultiPlus activates automatically, providing uninterrupted AC power in less than 20 milliseconds. This ensures sensitive equipment, including computers, continue to operate without disruption.

When paired with a GX device such as the Cerbo GX, you can monitor and control your system remotely via the free VRM app or VRM portal, from anywhere in the world. The MultiPlus can be easily accessed via smartphone, tablet, laptop, or PC.

The MultiPlus is also capable of parallel operation, with up to six units working together to provide higher power output. Additionally, three units can be configured for three-phase output. The PowerAssist feature helps boost the capacity of shore or generator power by supplementing power from the battery when needed, ensuring continuous operation without overloading the power source.

Key Features

Features of the MultiPlus 12/1600

Uninterrupted AC power (UPS function)

In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.

Remote Monitoring and Control

When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Multi and system or systems’ locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backupgenerator and more…”

Parallel Operation and Three Phase Capability

Up to six Multis can operate in parallel to achieve higher power output.

In addition to parallel connection, three units can be configured for three-phase output

PowerAssist: Boosting the Capacity of Shore or Generator Power

This feature takes the principle of PowerControl to a further dimension. It allows the MultiPlus to supplement the capacity of the alternative source. Where peak power is so often required only for a limited period, the MultiPlus will make sure that insufficient shore or generator power is immediately compensated for by power from the battery. When the load reduces, the spare power is used to recharge the battery.

Specifications

  • Brand: Victron Energy
  • Manufacturer Part Number: PMP122160000
  • GTIN: 8719076044949
  • Voltage: 12V
  • Cont. Output Power at 25°C: 1600VA
  • Peak Power: 2800W
  • Output AC Voltage: 230V
  • Transfer Switch: 16A
  • Charge Current House Battery: 70A
  • Charge Current Starter Battery: 1A
  • Protection Category: IP21
  • Efficiency: 93%
  • Bluetooth Compatible: No
  • Dimensions: H470 x W265 x D120mm
  • Weight: 10.2Kg
  • Warranty: 5 Years
  • Country of Manufacture: India

Datasheets

Datasheet
