Description

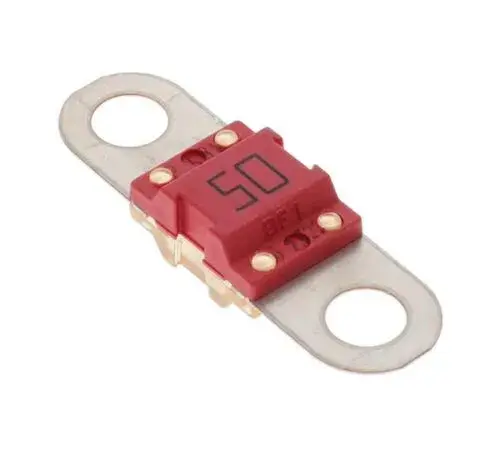

Rated at 50 amps and suitable for systems up to 58V DC, the MIDI-fuse features M6 bolt-down terminals for secure, low-resistance connections. With a cold resistance of just 1 mΩ and a typical voltage drop of 65mV, it ensures minimal energy loss while providing quick, effective overcurrent protection. Commonly used in marine, automotive, RV, and off-grid installations, this fuse is an essential part of any Victron-powered setup.
Key Features
- 50A rated current, suitable for 12V, 24V, and 48V DC systems (up to 58V)
- M6 bolt-down terminals for secure installation with MIDI-fuse holders
- Cold resistance: only 1 milliohm for efficient power flow
- Voltage drop: approximately 65mV under full load
- Designed for use in Victron Energy systems, but compatible with other DC setups
- Ideal for protecting batteries, inverters, charge controllers, and DC wiring
- Compact MIDI format saves space in fuse blocks and distribution panels
Specifications
- Product Name: Victron MIDI-Fuse 50A/58V-M6 (Single)
- Product Code: CIP134050020
- Rated Current: 50 Amps
- Maximum Voltage: 58 Volts DC
- Terminal Size: M6 (6 mm bolt)
- Cold Resistance: 1 mΩ (milliohm)
- Voltage Drop: Approx. 65mV at full load
- Fuse Type: MIDI / Bolt-on
- Application: DC system protection – batteries, inverters, etc.
- Format: Single fuse (not a pack)
