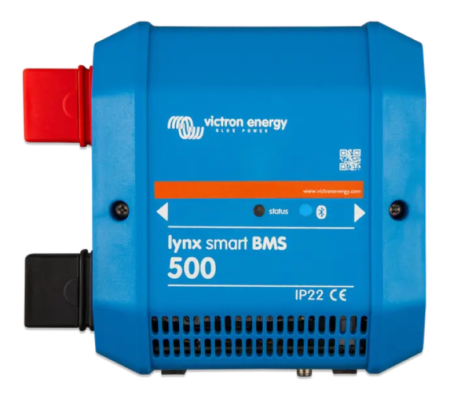

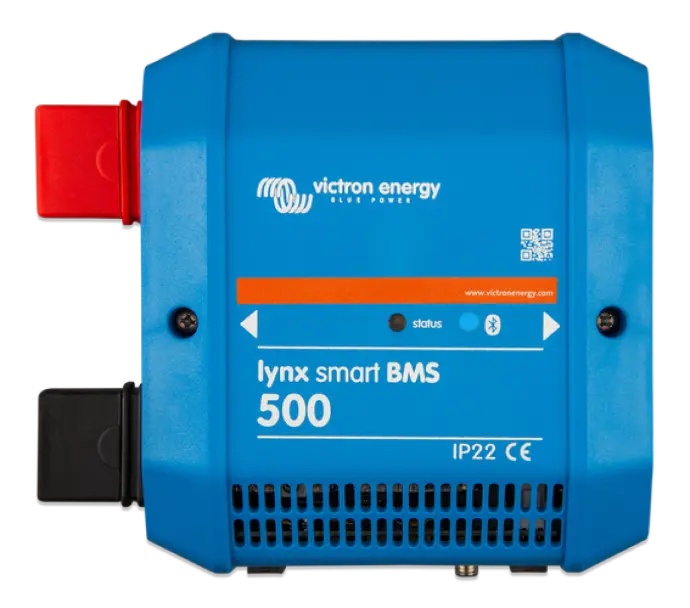

Victron Energy Lynx Smart BMS 500 NG (M10) - LYN034160310

The Victron Energy Lynx Smart BMS 500 NG (M10) is a dedicated Battery Management System for Victron Lithium Smart NG series batteries, offering superior protection and monitoring capabilities. This BMS is available in two versions: 500A and 1000A (M10) models. It integrates smoothly into the Lynx Distribution System for easy, modular setup.

The Lynx Smart BMS offers essential features like 500A contactor (acting as both a safety mechanism and a remote-controllable system switch) and a built-in battery monitor for real-time data on state of charge and more. Its Bluetooth connectivity allows you to monitor and configure the system via the VictronConnect app, enabling quick access to key data.

The Lynx Smart BMS also features local and remote monitoring via Victron GX devices such as the Cerbo GX or Ekrano GX, ensuring efficient integration into your overall Victron Energy setup. It supports VE.Can for easy communication with other Victron devices and offers integration with marine networks using NMEA 2000.

Furthermore, this BMS supports fuse monitoring with the Lynx Distributor, providing additional alerts when a fuse is blown, ensuring continuous, reliable performance.

Key Features

• Built-in 500A contactor: Acts as a safety mechanism and a remote-controllable system switch
• State of charge monitor: Provides data on battery health and charge levels
• Pre-alarm system: Signals a warning before the system shuts down due to issues like a low cell
• Bluetooth connectivity: Use the VictronConnect app for setup and monitoring
• Local and remote monitoring: Connect to a Victron GX device like the Cerbo GX or Ekrano GX
• Programmable relay: Used for alarm purposes or to control an alternator in Alternator ATC mode
• VE.Can and NMEA 2000 communication: Easy integration into marine networks for real-time data feed to marine MFDs
• Fuse monitoring: Monitors up to 4 Lynx Distributors and provides alerts if a fuse blows

Specifications

• Model: Lynx Smart BMS 500 NG (M10)
• Type: Battery Management System (BMS)
• Battery Compatibility: Victron Lithium Smart NG series batteries
• Contactor Rating: 500A
• Bluetooth: Yes, for use with VictronConnect app
• Relay: Programmable, used for alarms or alternator control
• Monitoring: State of charge and pre-alarm signals
• Communication: VE.Can and NMEA 2000 (for marine applications)
• Fuse Monitoring: Monitors up to 4 Lynx Distributors
• Remote Monitoring: Via Victron GX devices (e.g., Cerbo GX, Ekrano GX)
• Warranty: 5 years
