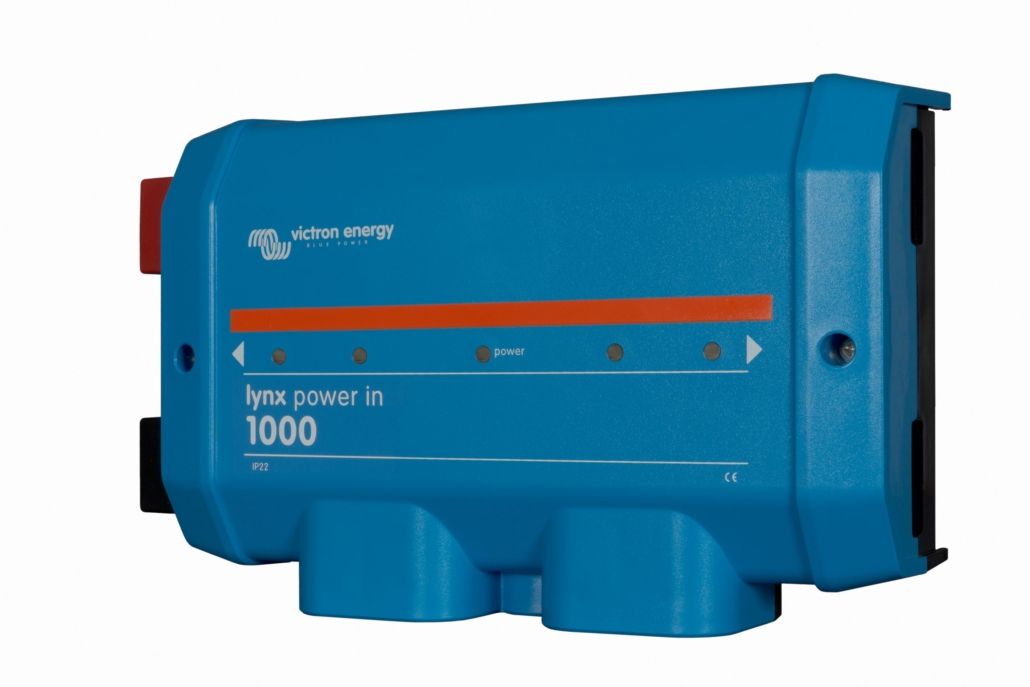

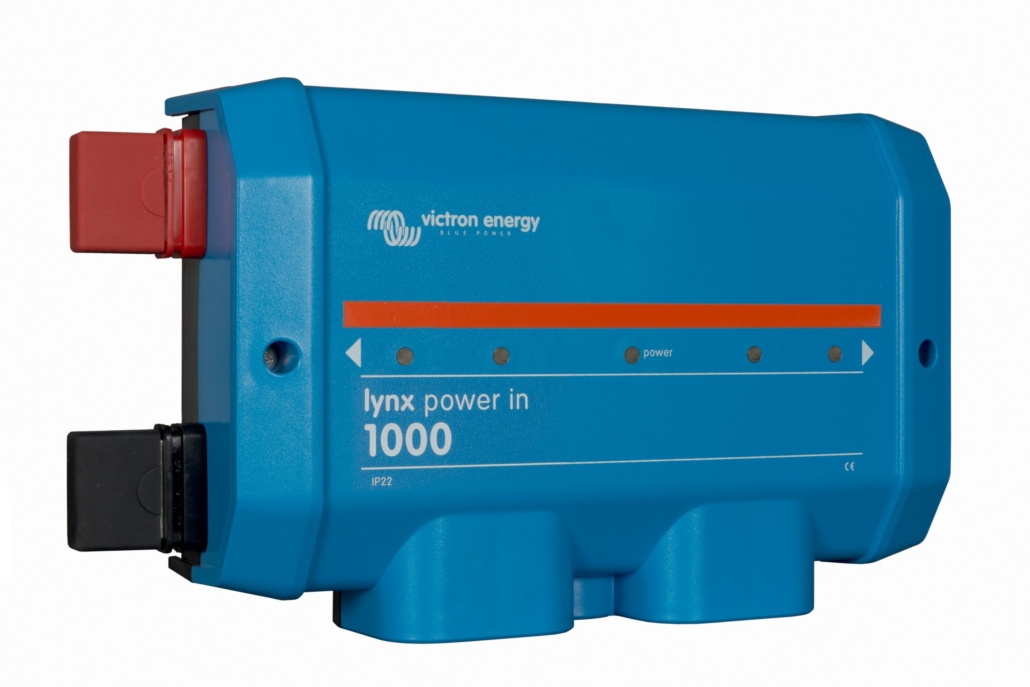

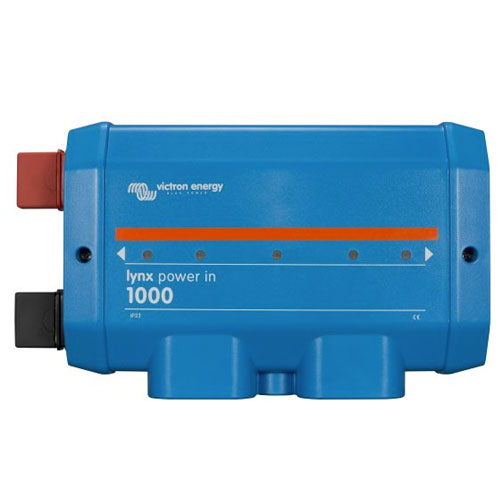

Victron Energy Lynx Power In M10 (LYN020102010)

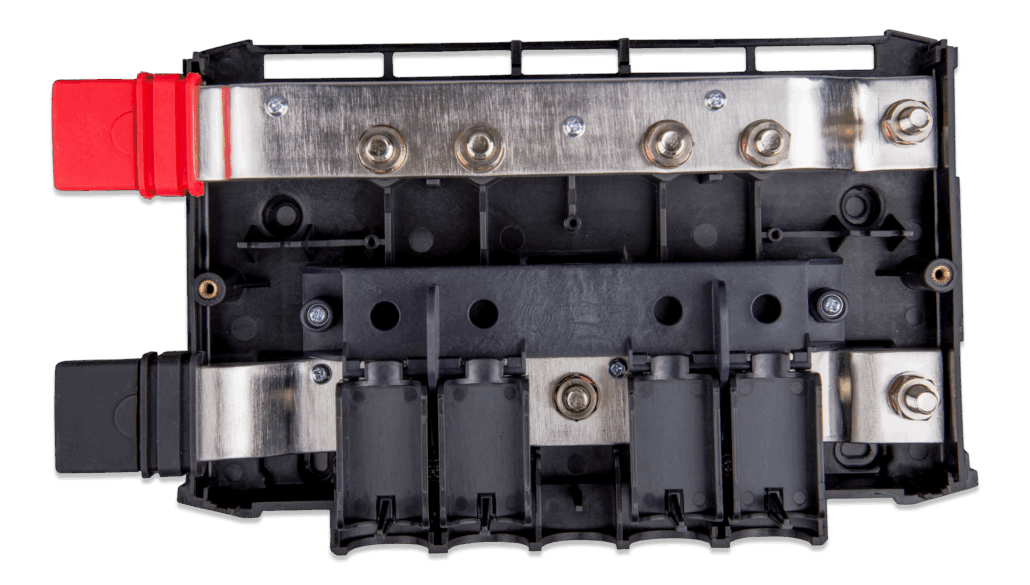

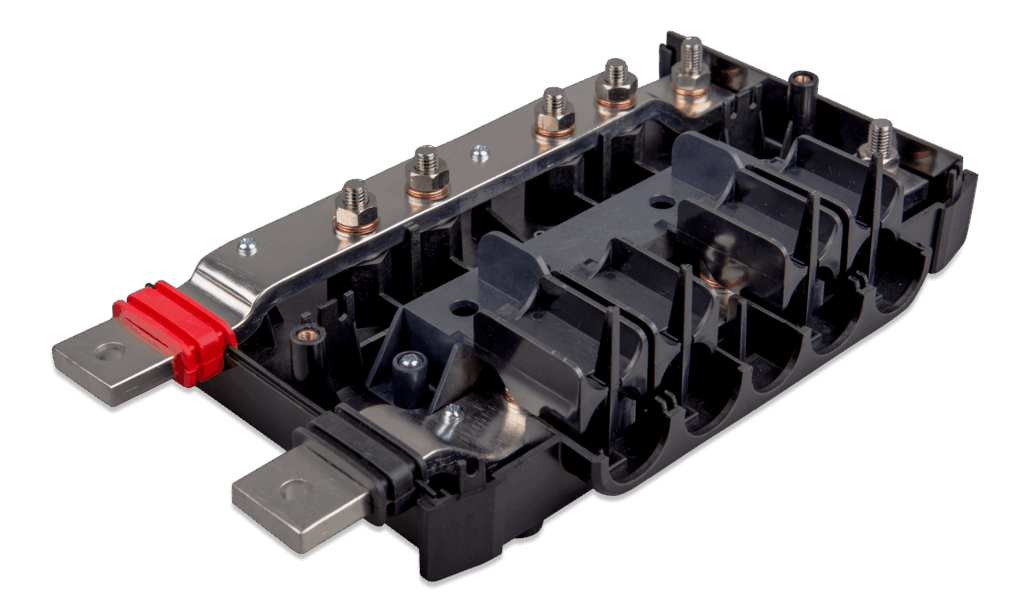

A modular DC busbar from Victron's Lynx distribution system. The Lynx Power In has a positive and a negative busbar with four connections for batteries, loads or chargers, and joins onto other Lynx modules on either side.

This is the current M10 model, Victron part number LYN020102010. M10 is the size of the busbar joints between Lynx modules. It replaces the discontinued M8 model (LYN020102000), and M10 modules can't be bolted straight onto M8 ones.

The Lynx Power In has no fuses of its own, so every battery, load and charger connected to it needs its own external fuse, rated for that circuit. If you want MEGA fuses on the busbar itself, use a Lynx Distributor, or ask us about our fuse-stud kit.

Specifications (Victron)

• Current rating: 1,000 A continuous
• Operating voltage: 9 to 60 V DC (12, 24 or 48 V systems)
• Busbar connections: M10
• Busbar: tinned copper, 8 × 30 mm
• Enclosure: ABS, IP22, blue (RAL 5012)
• Size: 290 × 170 × 80 mm
• Weight: 2.1 kg
• Operating temperature: −40 °C to +60 °C

Specifications from Victron's Lynx Power In product page and manual (Lynx Power In M10, section 8).
