Description

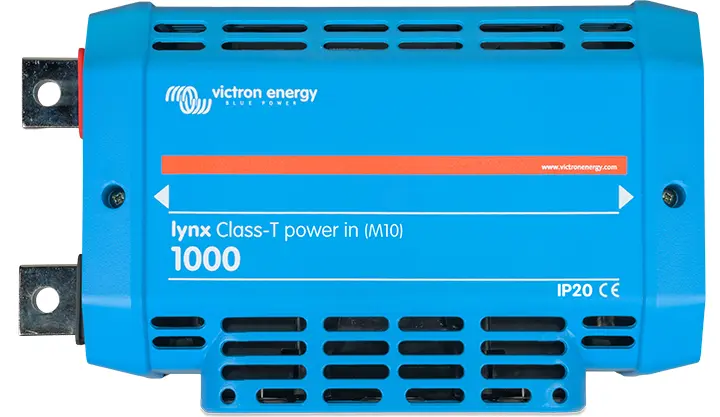

The Lynx Class-T Power In is designed to manage power distribution and fusing for DC systems. It features both positive and negative busbars, as well as a ground connection for enhanced safety. This module is capable of handling up to two Class-T fuses (available separately in 225A, 250A, 350A, and 400A ratings), providing robust protection for lithium battery strings. For larger installations with three or more battery strings, multiple Lynx Class-T modules can be used in parallel. The unit integrates effortlessly with other Victron Lynx M10 products, making it ideal for flexible and scalable battery management.
Key Features
- Positive and negative busbar for DC system connections.
- Supports two Class-T fuses (225A, 250A, 350A, 400A – sold separately).
- Connects and fuses up to two strings of lithium batteries.
- Ground connection ensures safe and efficient grounding of the DC system.
- Integrates seamlessly with other Victron M10 Lynx products.
- Suitable for large installations using multiple battery strings.
Specifications
- Model: LYN060404010
- Fuse Compatibility: Class-T (225A, 250A, 350A, 400A)
- Number of Fuses: 2 (fuses sold separately)
- Busbar Type: Positive and negative
- Ground Connection: Yes
- Compatible Products: M10 Lynx products
- Applications: Lithium Battery Strings, DC Systems
