Description

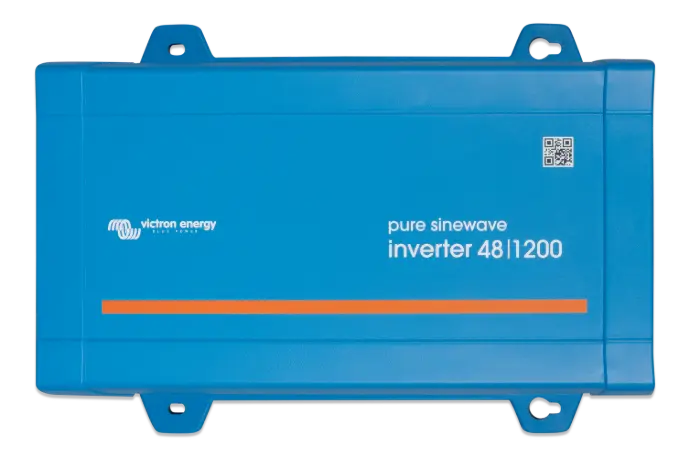

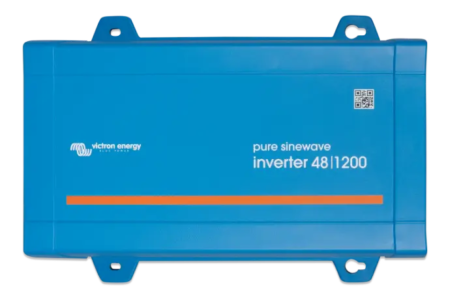

The Victron Phoenix 48/1200 230V VE.Direct Inverter is engineered for professional use and allows you to power 230V AC domestic equipment using leisure or automotive batteries (12V, 24V, or 48V DC). It offers high performance and reliability, ensuring that all connected equipment receives stable, high-quality power.
The VE.Direct communication port enables connection to a computer via a VE.Direct to USB interface cable or to Apple and Android devices via the VE.Direct Bluetooth Smart Dongle, giving users the flexibility to monitor and control the inverter remotely.
Key features include full configurability of low battery voltage settings, including alarm trip and reset levels, cut-off levels, and restart levels. The output voltage is adjustable between 210V and 245V, and it can operate at 50 Hz or 60 Hz frequencies. ECO mode can be enabled to minimize energy consumption, with automatic standby when the load decreases below a preset value (min load: 15W). The inverter will periodically check for load and resume operation when necessary.
The inverter's design uses the full bridge plus toroidal transformer topology, ensuring proven reliability and durability. It is short circuit proof and protected against overheating due to overload or high ambient temperature.
Key Features
- VE.Direct communication port for remote monitoring and configuration
- Fully configurable settings for voltage, cut-off levels, alarms, and ECO mode
- High start-up power for challenging loads like power converters and electric tools
- ECO mode for energy savings with automatic standby
- Remote on/off function via two-pole connector
- Simple installation with screw terminals (no special tools required)
- Reliability: short-circuit proof and protected against overheating
- Monitoring of input/output voltage, load, and alarms
- Compatible with VictronConnect for live status and configuration via Bluetooth Smart Dongle
Specifications
- Brand: Victron Energy
- Manufacturer Part Number: PIN482121100
- GTIN: 8719076024255
- Voltage: 48V DC
- Continuous Output Power: 1200VA
- Peak Power: 2400W
- Output AC Voltage: 230V
- Frequency: 50Hz or 60Hz
- Efficiency: 94%
- Bluetooth Enabled: Yes (via VE.Direct Bluetooth Smart Dongle)
- Dimensions (HxWxD): H200 x W210 x D120 mm
- Weight: 2.8 kg
- Warranty: 5 Years
- Country of Manufacture: India
