Description

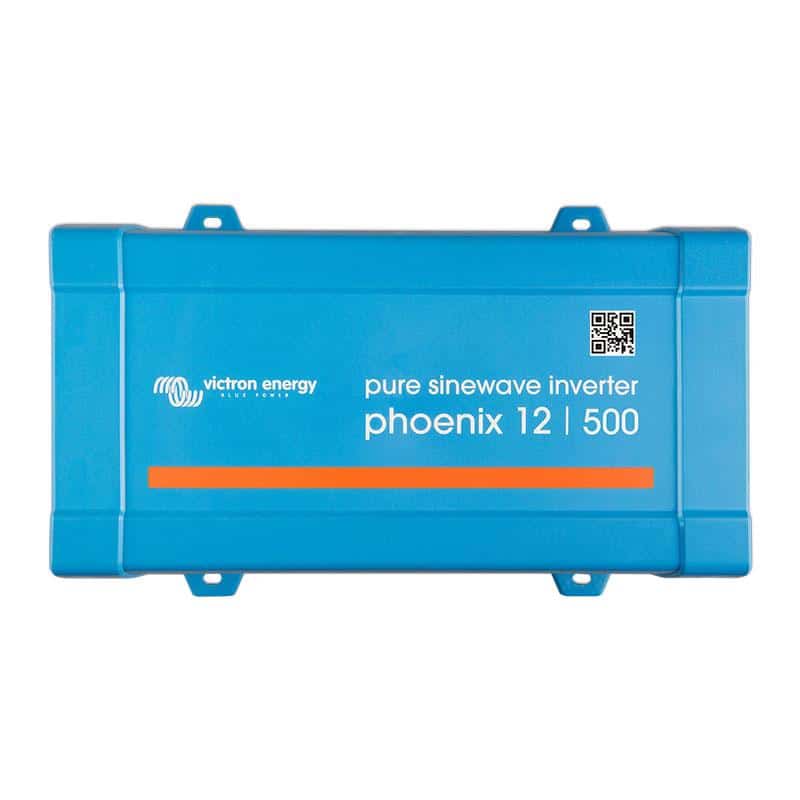

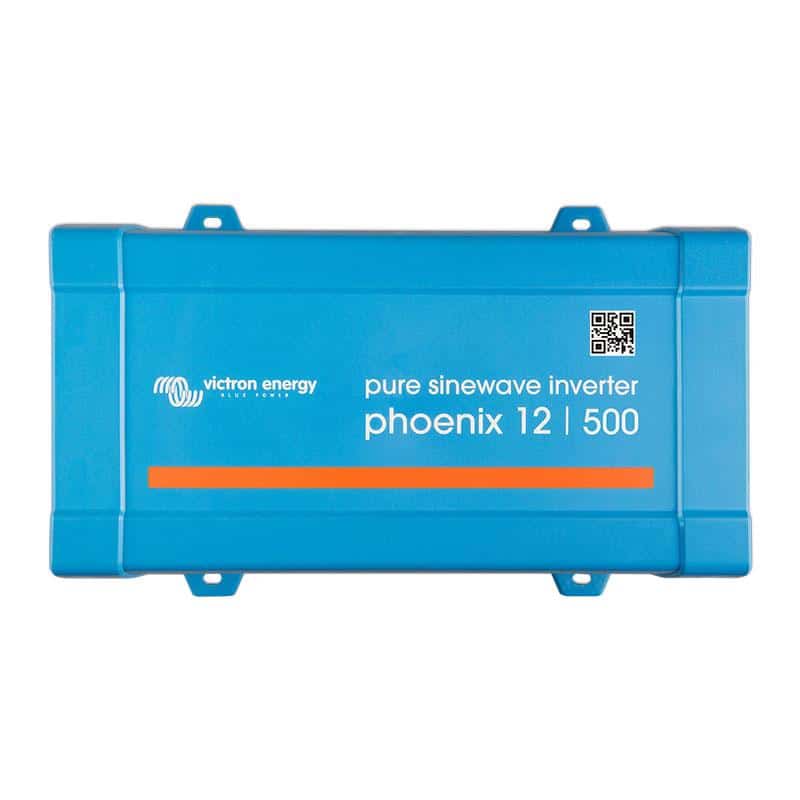

The Victron Phoenix Inverter 12/500 230V VE.Direct SCHUKO is designed to convert 12V DC battery power into 230V AC, suitable for powering a wide range of domestic appliances, tools, and electronic devices that require 230V AC. With 500W continuous output and a 900W peak power, this inverter is perfect for use in off-grid systems, RVs, boats, and remote locations.
It features the VE.Direct communication port, enabling easy connection to a computer or mobile device via a Bluetooth dongle or USB interface for remote monitoring, configuration, and diagnostics. The inverter is fully configurable with ECO mode, low voltage alarm, dynamic cut-off, and restart levels to optimize energy consumption. The Schuko plug ensures compatibility with European power outlets, making this inverter a reliable option for a variety of appliances.
With short circuit protection, overheating safeguards, and high start-up power, the Victron Phoenix Inverter 12/500 can handle demanding loads such as LED power converters, halogen lamps, or electric tools. The ECO mode automatically switches the inverter to standby when the load is below 15W, helping to save energy when the load is minimal.
Key Features
- VE.Direct Communication Port: Allows for remote monitoring and configuration via VictronConnect app (with the Bluetooth Smart dongle).
- Schuko Plug: Compatible with European 230V AC outlets.
- ECO Mode: Automatically switches to standby when the load is below 15W and reactivates when the load exceeds the preset level.
- High Start-Up Power: Handles high start-up power for devices such as LED lamps, halogen lamps, and electric tools.
- Short Circuit and Overheating Protection: Built-in protection ensures safe operation under various conditions.
- Remote On/Off: Can be controlled with a remote switch for convenient operation.
- DC Connection with Screw Terminals: Simple installation without special tools required.
- IP21 Protection Category: Provides protection against solid objects greater than 12mm and dripping water, suitable for indoor use.
Specifications
- Feature: Specification
- Brand: Victron Energy
- Manufacturer Part Number: PIN121501200
- GTIN: 8719076045212
- Voltage: 12V DC
- Continuous Output Power: 500W (500VA)
- Peak Power: 900W
- Output AC Voltage: 230V AC
- Efficiency: 90%
- Plug Type: Schuko
- Protection Category: IP21
- Bluetooth Enabled: No
- Dimensions (H x W x D): 86 x 172 x 275 mm
- Weight: 3.9 kg
- Warranty: 5 years
- Country of Manufacture: China
