Description

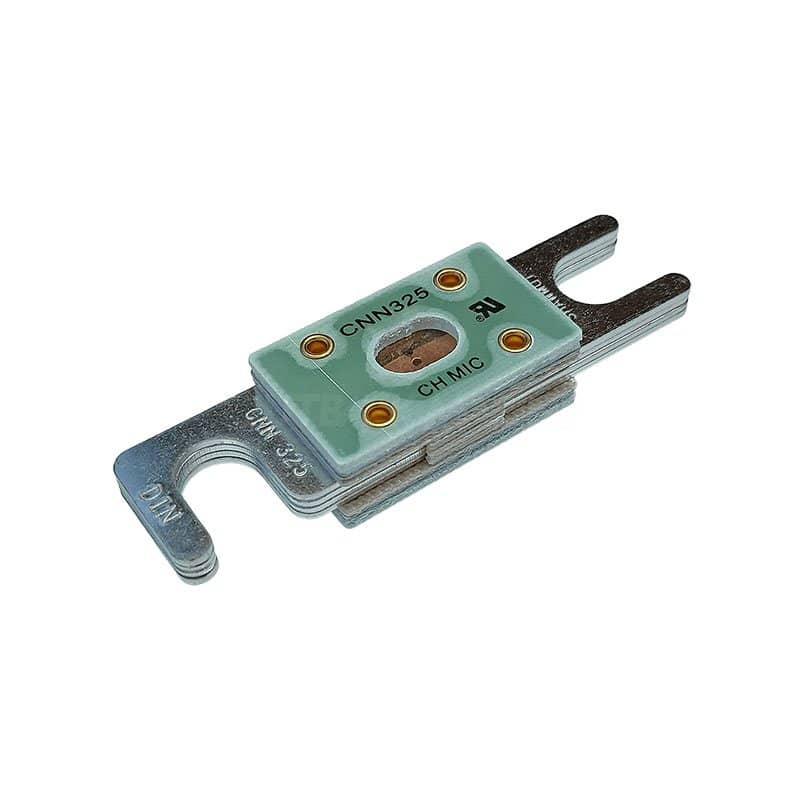

The Victron Fuse CNN for Lynx Shunt 325A/80V (CIP140325000) offers reliable high-voltage protection for systems with Lynx modules and is ideal for solar off-grid, lithium batteries, lift trucks, scissor lifts, and other low-voltage battery-operated equipment. Rated for up to 80Vdc and 325A, this fuse offers safety and reliability in demanding power systems.
With a 2,500A interrupting rating, the CNN fuse is suitable for protecting Lynx Shunt systems, which have a nominal current rating of 1000A for 12V, 24V, or 48V systems. The window design makes it easy to check the fuse status visually, enhancing convenience in maintenance.
The CNN fuses are known for being fast-acting, providing quick protection against overcurrent situations. Additionally, they are RoHS compliant and lead-free, meeting environmental standards for modern applications.
This fuse is a critical component in high-voltage systems, especially those involving solar energy, lithium-ion batteries, and industrial battery-powered equipment.
Key Features
- 80Vdc High Voltage Protection: Safeguards systems against overvoltage conditions.
- 325A Current Rating: Perfect for use with Lynx modules, ensuring proper system protection.
- 2,500A Interrupting Rating: Can handle high power surges safely.
- Compact Size: Saves space while providing powerful protection.
- Window Design: Allows easy visual inspection of fuse status.
- Fast-Acting: Provides quick reaction to faults, ensuring system reliability.
- RoHS Compliant and Lead-Free: Environmentally friendly design.
- Versatile Applications: Ideal for solar off-grid systems, lithium batteries, lift trucks, scissor lifts, and more.
Applications:
- Solar Off-Grid Systems: Provides protection for high-voltage off-grid solar applications.
- Lithium Battery Systems: Ideal for lithium-ion battery-powered systems, ensuring safety and reliability.
- Lift Trucks, Scissor Lifts, Pallet Movers: Protects battery-operated industrial equipment.
- Battery-Powered Equipment: Suitable for various equipment moving hazardous materials.
- Lynx Module Systems: Used in Lynx Shunt, Lynx Distributor, and Lynx Power In, rated for nominal current of 1000A across 12V, 24V, and 48V systems.
System Compatibility & Power Ratings:
- System Voltage: Power Rating
- 12V: 12kW
- 24V: 24kW
- 48V: 48kW
Specifications
- Feature: Specification
- Fuse Rating: 325A/80Vdc
- Interrupting Rating: 2,500A
- Environmental Rating: RoHS compliant, lead-free
- Fuse Type: CNN
- Window Design: Yes (For fuse status indication)
- Fast-Acting: Yes
- Dimensions: Compact design for space-saving
- Applications: Solar off-grid, lithium batteries, industrial equipment
- Voltage Range: 80Vdc Max
