Description

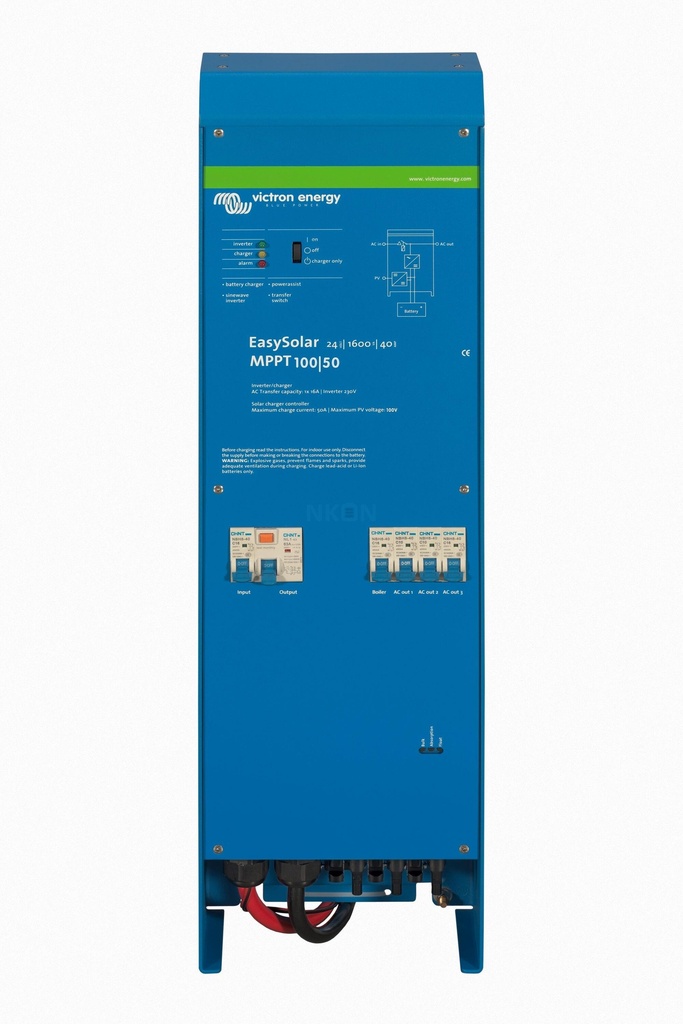

The EasySolar 24/1600/40-16 is ideal for small to medium off-grid systems where efficiency, ease of setup, and reliability are essential. The integrated BlueSolar MPPT 100/50 charge controller ensures maximum solar harvest from up to three PV panel strings, while the MultiPlus Compact 24/1600/40 inverter/charger provides 1600 VA of continuous power and a 40 A AC battery charger. The shared DC battery cabling simplifies internal connections and boosts system efficiency.
The built-in AC distribution unit includes RCD protection, multiple AC outputs, and smart switching – one output is only active when AC input (from generator or grid) is present. With PowerAssist technology, the inverter can supplement grid or generator supply to prevent overload. The system is fully programmable via Victron’s software assistants, supporting both autonomous off-grid setups and grid-interactive solutions.
Key Features
- All-in-One Design – combines MPPT charge controller, inverter/charger, and AC distribution
- MPPT 100/50 Charge Controller – efficiently manages up to three PV panel arrays
- MultiPlus Compact 24/1600/40 – delivers 1600 VA inverter power and 40 A AC battery charging
- PowerAssist Technology – boosts weak grid or generator supply by drawing from the battery
- Smart AC Distribution – with RCD and 4 output circuits (10A and 16A breakers)
- Solar + Grid/Genset Charging – batteries can be charged from solar or AC input
- Minimal Wiring Required – integrated system speeds up installation
- Fully Programmable – supports grid-tied and off-grid operation via Victron’s configuration tools
- MC4 Connectors Included – easy PV input connection for up to three panel strings
Specifications
- Model: EasySolar 24/1600/40-16 230V MPPT 100/50
- SKU / Product Code: CEP242161010
- Battery Voltage: 24 V
- Inverter Continuous Output: 1600 VA / 1300 W
- Inverter Peak Power: 3000 W
- Charger Current (AC): 40 A
- Solar Charge Controller: BlueSolar MPPT 100/50
- Max PV Voltage: 100 V
- Max PV Current: 50 A
- AC Input Voltage Range: 187 – 265 V AC
- AC Transfer Switch: 16 A
- AC Outputs: 4 protected outputs (10 A / 16 A breakers, 1 switched)
- Protection Features: RCD (30 mA/16 A), overload, short circuit, temperature
- PowerAssist: Yes
- Interface: VE.Bus
- Dimensions: (Check manufacturer data sheet)
- Installation: Wall-mountable
- Monitoring: Via GX device / VE.Bus interface
- Brand: Victron Energy
- Warranty: Standard Victron warranty
