Description

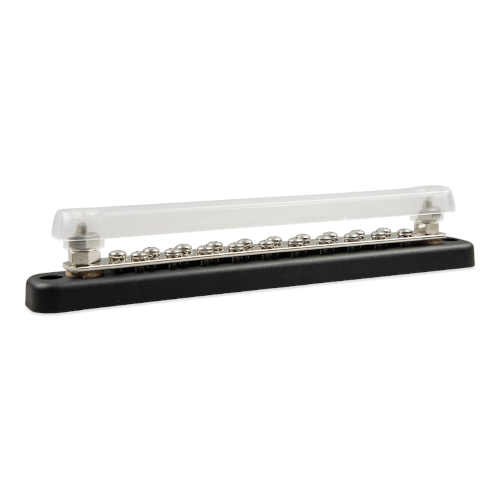

This Victron Energy Busbar comes with 20 connection screws, allowing you to connect multiple devices or batteries to your system. The removable protection cover ensures safety during installation and operation, while the compact design makes it suitable for various spaces. With a max voltage rating of 70VDC, this busbar is built for low voltage DC applications, providing a secure and efficient way to distribute power across different devices in your system.
Key Features
- 150A Current Rating – Designed to handle high current loads in DC systems.
- 20 Connection Terminals – Ideal for multiple connections, allowing flexibility in setup.
- Removable Protection Cover – Provides extra safety during installation and operation.
- Max Voltage Rating of 70VDC – Suitable for low voltage DC applications.
- Compact Design – Space-efficient with dimensions of H45 x W232 x D32mm.
- 5-Year Warranty – Long-lasting reliability backed by Victron Energy.
Specifications
- Brand: Victron Energy
- Manufacturer Part Number: VBB115022020
- GTIN: 8719076056379
- Max. Current Rating: 150A
- Max. Voltage Rating: 70VDC
- Dimensions: H45 x W232 x D32mm
- Weight: 1kg
- Warranty: 5 Years
- Country of Manufacture: Taiwan
