Authorised Victron Energy InstallerVictron Energy BlueSolar PWM-LCD & USB 48V-20A SCC040020050
Victron EnergyExcellent on Google

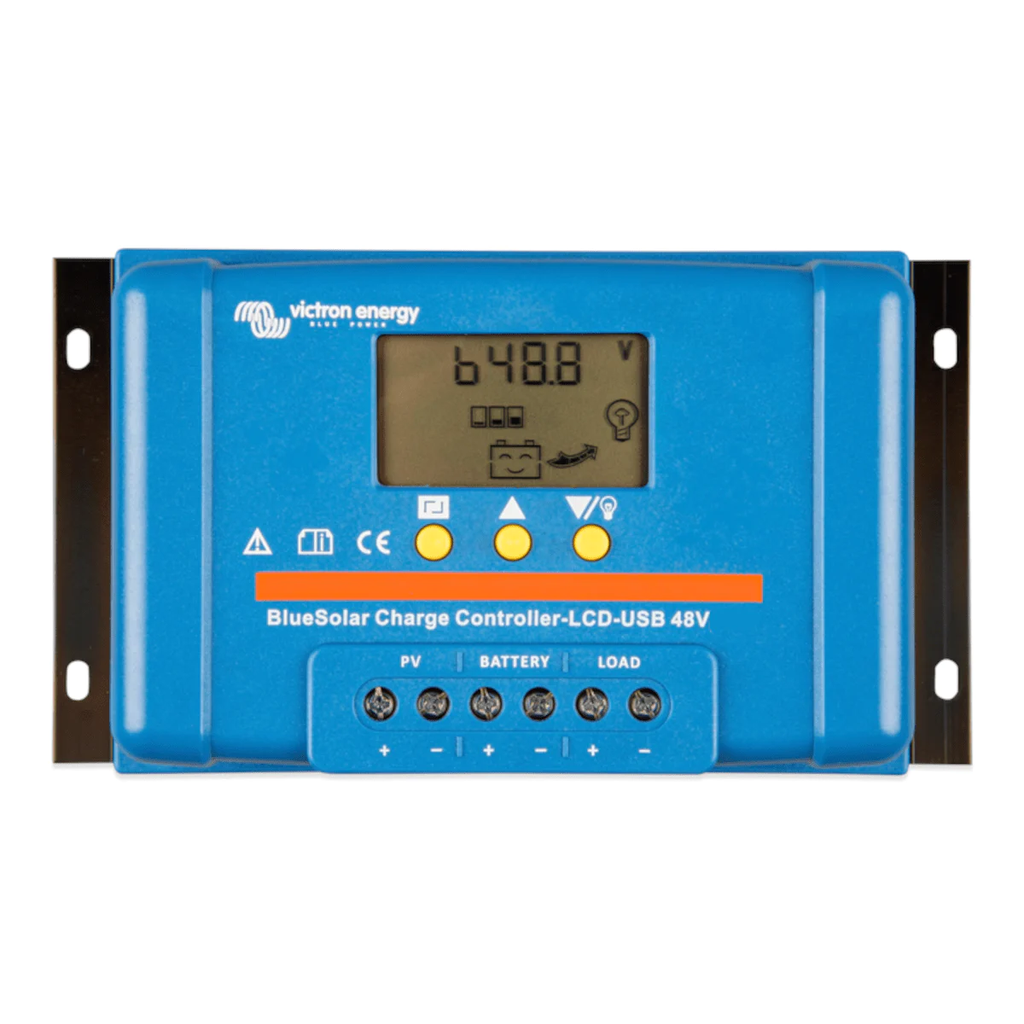

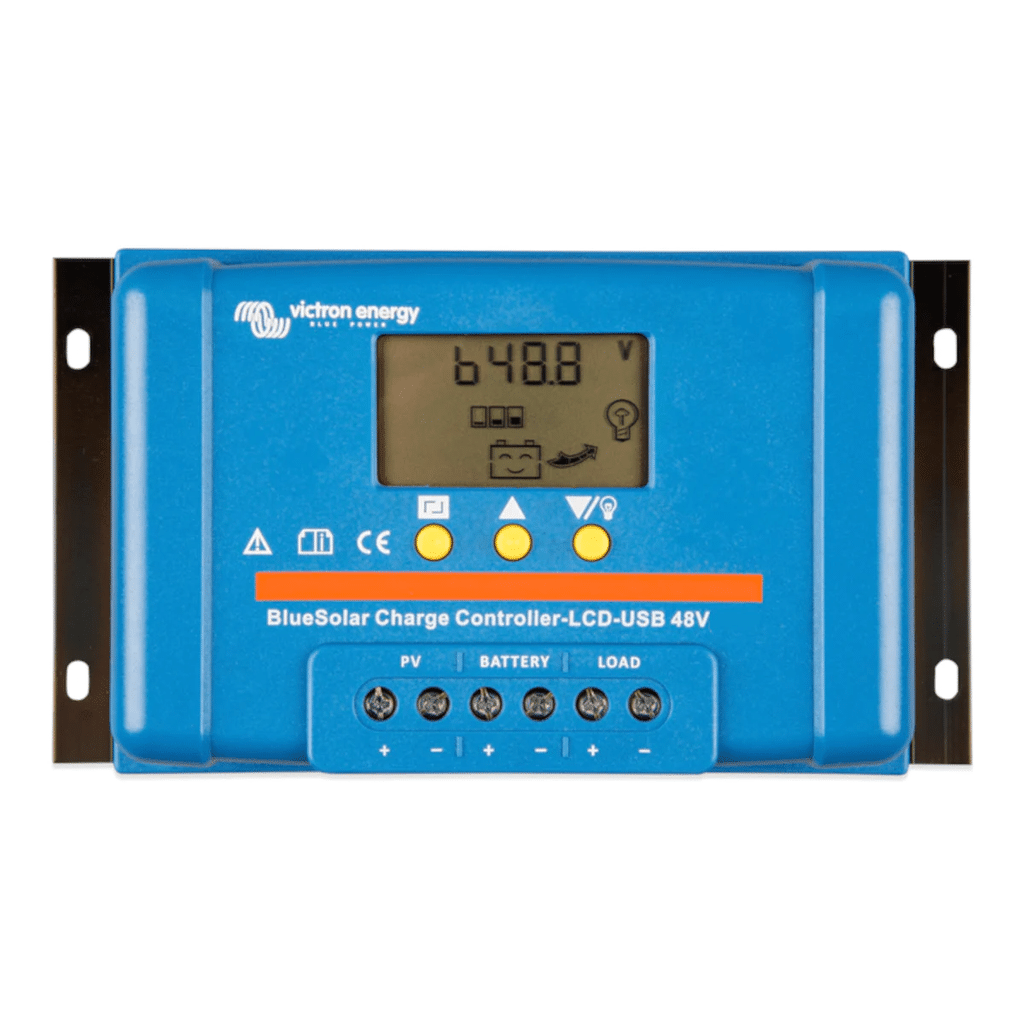

Victron Energy BlueSolar PWM-LCD & USB 48V-20A SCC040020050

Victron part no. SCC040020050

£32.80Available to order, usually dispatched in 6 to 10 working days
Usually dispatched in 6 to 10 working daysUK delivery, priced at checkout
5 years standard warrantyVictron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user. Victron warranty policy
14-day returnsOn unused standard items
Tom Alderdice
Not sure it's the right size?Free 30-minute call with Tom, or ring 01539 761 467.
Book a call
Overview

About this product

This controller helps to prevent over-discharge by disconnecting the load when the battery voltage reaches a pre-set level. The load output is designed with manual control, low voltage disconnect, and a timer for custom load management. The programmable battery charge algorithm supports AGM, GEL, Flooded, and LiFePO4 batteries (with internal BMS only), ensuring the optimal charging profile for your battery type. It also includes two 5V USB outputs for easy device charging, with a combined maximum current of 2A.

Key Features

  • LCD Display: For real-time monitoring and easy system setup.
  • Adjustable Load Output: Prevents battery over-discharge by disconnecting the load when voltage reaches a preset level.
  • Day/Night Timing: Pre-set ON-time after dusk for load output management.
  • Programmable Battery Charge Algorithm: Compatible with AGM, GEL, Flooded, and LiFePO4 batteries (internal BMS required).
  • Two 5V USB Outputs: Charge USB devices with a maximum current of 2A.
  • Manual Control + Low Voltage Disconnect + Timer: Enhanced load management features.
  • Maximum Solar Voltage: 100V for higher solar panel compatibility.
  • Common Positive Grounding: Simplified installation.
  • IP20 Protection: Dust-resistant for indoor use.
  • 5-Year Warranty: Reliable and long-lasting performance.

Specifications

  • Brand: Victron Energy
  • Manufacturer Part Number: SCC040020050
  • GTIN: 8719076046240
  • Battery Voltage: 48V
  • Rated Charge Current: 20A
  • Maximum Solar Voltage: 100V
  • Load Output: Manual control + low voltage disconnect + timer
  • Grounding: Common positive
  • IP Rating: IP20
  • Dimensions: H101 x W184 x D47mm
  • Weight: 0.3kg
  • Warranty: 5 Years
