Authorised Victron Energy InstallerVictron part no. BPC121545102

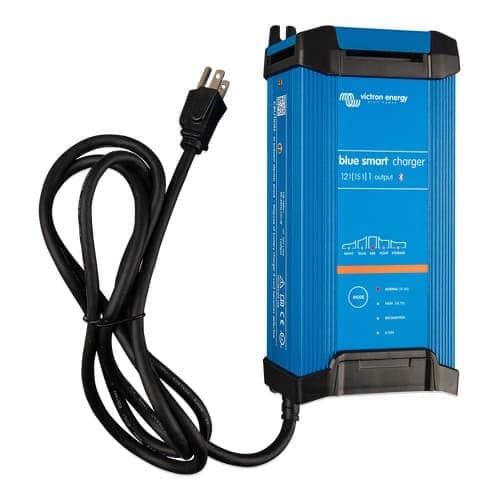

The Blue Smart IP22 Charger 12/15(1) 120V NEMA 5-15 is a cutting-edge professional battery charger designed for versatility in workshops and motor vehicles, including classic cars, motorcycles, boats, and camper-vans. With built-in Bluetooth Smart technology, this charger offers a wireless solution for monitoring voltage, adjusting settings, and updating firmware conveniently via the VictronConnect app on smartphones, tablets, or laptops.
Highly efficient, the Blue Smart IP22 Charger achieves up to 94% efficiency, generating significantly less heat compared to industry standards. Its adaptive 6-stage charge algorithm, including test, bulk, absorption, recondition, float, and storage modes, is microprocessor-controlled to optimise charging based on battery usage.
The storage mode minimises maintenance and ageing during periods of battery inactivity, reducing float voltage to prevent gassing and corrosion. It also features a Li-ion charging algorithm, a fully discharged battery recovery function, and NIGHT/LOW settings for reduced noise and power consumption.
Protected against overheating, the charger adjusts output current with temperature increases up to 50°C, ensuring reliability. Eleven LEDs provide clear status indications, and a MODE button allows easy configuration of charge algorithms and settings.
Key Features
Blue Smart IP22 12VDC 15A 1 Bank 120V Charger: Dry Mount
The Blue Smart IP22 Charger is the professional battery charger with built-in bluetooth. The Blue Smart IP22 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans.
Bluetooth Smart
The Blue Smart IP22 Charger is the wireless solution to monitor voltage and current, to change settings and to update the charger when new features become available.
High efficiency
With up to 94% efficiency, these chargers generate up to four times less heat when compared to the industry standard. And once the battery is fully charged, power consumption reduces to 0,5 Watt, some five to ten times better than the industry standard.
Adaptive 6-stage charge algorithm: test, bulk, absorption, recondition, float, storage
The Blue Smart Charger features a microprocessor-controlled ‘adaptive’ battery management. The adaptive feature will automatically optimise the charging process relative to the way the battery is being used.
Storage Mode: less maintenance and ageing when the battery is not in use
The storage mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the storage mode float voltage is reduced to 2,2V/cell (13,2V for a 12V battery) to minimise gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalise’ the battery. This feature prevents stratification of the electrolyte and sulfation, a major cause of early battery failure.
Also charges Li-ion batteries
Li-ion batteries are charged with a simple bulk, absorption, float algorithm.
Fully discharged battery recovery function
Will initiate charging even if the battery has been discharged to zero volts. Will reconnect to a fully discharged Li-ion battery with internal disconnect function.
NIGHT and LOW setting
When in NIGHT or LOW mode, the output current is reduced to max. 50% of the nominal output and the charger will be totally noiseless. The NIGHT mode automatically ends after 8 hours. The LOW mode can be ended manually.
Protected against overheating
Output current will reduce as the temperature increases up to 50°C, but the Blue Smart Charger will not fail.
Eleven LEDs for status indication
Charge algorithm: TEST / BULK / ABSORPTION / RECONDITION / FLOAT / STORAGE / READY. MODE button to set: NORMAL (14,4V) / HIGH (14,7V) / RECONDITION / LI-ION.
