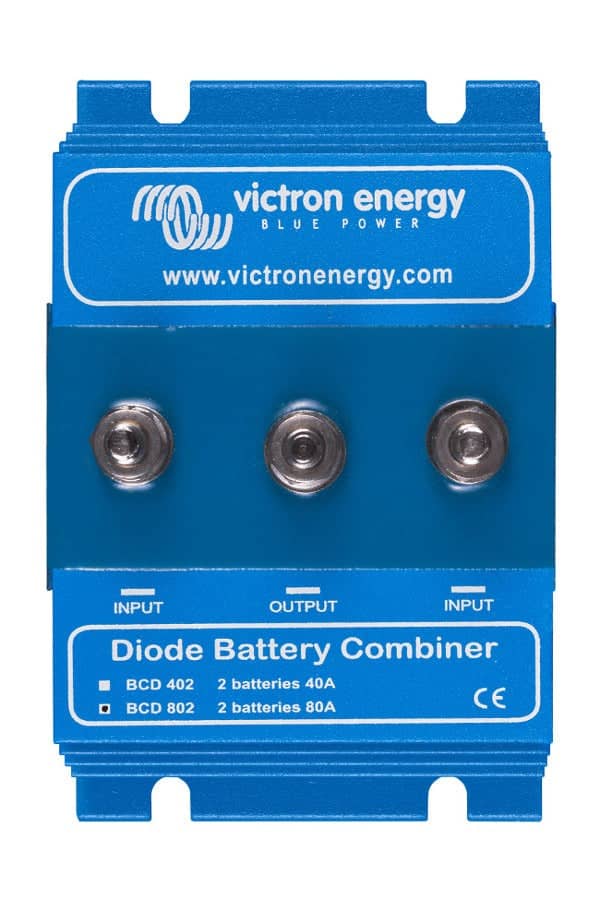

Description
Diode Battery Combiners are used to guarantee continuous DC power to mission critical equipment, such as an electronic engine control system. With a diode battery combiner two or more DC power sources can be used in parallel to supply the mission critical load. Failure of one source will not interrupt power to the critical load.
The Argo Battery Combiners feature a low voltage drop thanks to the use of Schottky diodes: at low current the voltage drop is approximately 0,3 V and at the rated output approximately 0,45 V.
Key Features
- Diode Battery Combiner for continuous DC power supply to critical equipment
- Allows parallel operation of two or more DC power sources
- Prevents power interruption in case of source failure
- Argo Battery Combiners feature Schottky diodes for low voltage drop
- Voltage drop of approximately 0.3V at low current and 0.45V at rated output
- M6 Bolts for secure connections
- Compact dimensions: H60 x W120 x D75mm
- Lightweight design with a weight of 0.8 kg
- 5-year warranty for reliability
Specifications
- Brand: Victron Energy
- Manufacturer Part Number: BCD000802000
- Maximum Continuous Current (A): 80
- Number Of Batteries: 2
- Connection: M6 Bolts
- Dimensions: H60 x W120 x D75mm
- Weight (kg): 0.8
- Warranty: 5 Years
- Country of Manufacture: India
