Description

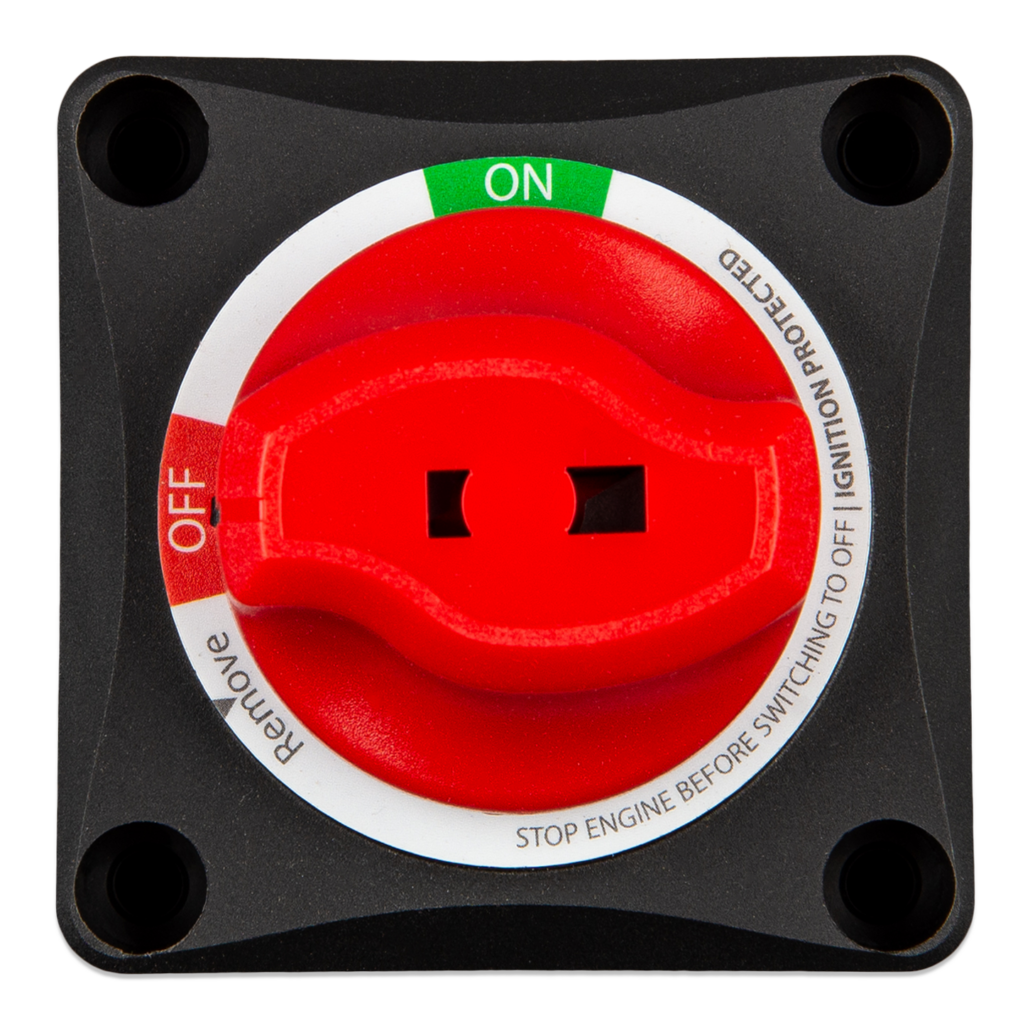

Victron Marine grade battery isolator switch. Suitable for battery systems up to 48VDC. 275A continuous rating.
| Brand | Victron Energy |
|---|---|
| Manufacturer Part Number | VBS127010010 |
| GTIN | 8719076052258 |
| Max. Continuous Current | 275A |
| One Minute Rating | 455A |
| Cranking Rating | 1250A |
| Voltage Rating | 48V |
| Terminal Material | Tin-plated copper |
| Hex Nut Material | Tin-plated copper |
| Terminal Diameter | 3/8 inch / 9.53mm |
| Recommended Torque | 70 lbf·inch / 8 N·m |
| Base Material | Glass fiber reinforced nylon |
| Mounting | Surface or rear panel mount |
| Dimensions | H69 x W69 x D73mm |
| Weight | 0.2Kg |
| Warranty | 5 Years |
| Country of Manufacture | Taiwan |
