Authorised Victron Energy InstallerVictron Energy Battery Monitor BMV-712 BLACK Smart BAM030712200R
Victron EnergyExcellent on Google

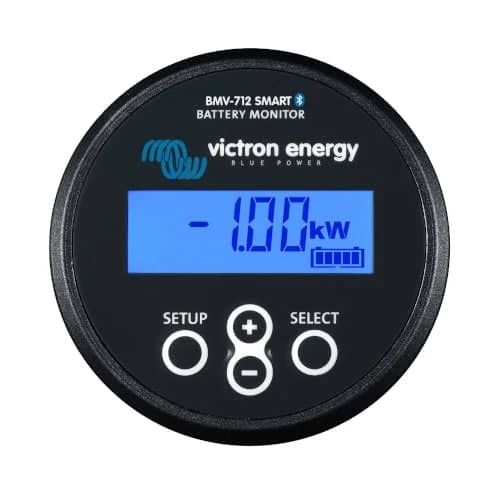

Victron Energy Battery Monitor BMV-712 BLACK Smart BAM030712200R

Victron part no. BAM030712200R

£114.07In stock · 13 available
Usually dispatched in 1 to 2 working daysUK delivery, priced at checkout
5 years standard warrantyVictron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user. Victron warranty policy
14-day returnsOn unused standard items
Tom Alderdice
Not sure it's the right size?Free 30-minute call with Tom, or ring 01539 761 467.
Book a call
Overview

About this product

With Bluetooth built-in, the BMV-712 Black Smart is ready for the Internet of Things (IoT) era.

With Bluetooth being implemented in most other Victron Energy products, wireless communication between products will simplify system installation and enhance performance.

Key Features

Feature of the BMV-712 Black Smart

Bluetooth inside

With Bluetooth built-in, the BMV-712 Black Smart is ready for the Internet of Things (IoT) era.

Download the Victron Bluetooth app

Use a smartphone or other Bluetooth enabled device to:

customise settings,

monitor all important data on single screen

view historical data, and to

update the software when new features become available

Easy to install

All electrical connections are to the quick connect PCB on the current shunt. The shunt connects to the monitor with a standard RJ12 telephone cable. Included: RJ12 cable (10 m) and battery cable with fuse (2 m); no other components needed.

Also included are a separate front bezel for a square or round display appearance, a securing ring for rear mounting and screws for front mounting.

Midpoint voltage monitoring

One bad cell or one bad battery can destroy a large, expensive battery bank. When batteries are connected in series, a timely warning can be generated by measuring the midpoint voltage.

We recommend our Battery Balancer to maximise service life of series-connected lead-acid batteries.

Very low current draw from the battery

Current consumption of the BMV: 0.7 Ah per month (1 mA) @12 V and 0.6 Ah per month (0.8 mA) @ 24 V. Especially Li-ion batteries have virtually no capacity left when discharged until low voltage shutdown.

After shutdown due to low cell voltage, the capacity reserve of a Li-ion battery is approximately 1Ah per 100.

Ah battery capacity. The battery will be damaged if the remaining capacity reserve is drawn from the battery.

A residual current of 10 mA for example may damage a 200 Ah battery if the system is left in discharged state during more than 8 days.

Bi-stable alarm relay

Prevents increased current draw in case of an alarm.

Specifications

  • Brand: Victron Energy
  • Manufacturer Part Number: BAM030712200R
  • GTIN: 8719076049517
  • Protection Category: IP55
  • Bluetooth Enabled: Yes
  • Front Diameter: 63mm
  • Front Bezel: 69x69mm
  • Body Diameter and Depth: 52mm and 31mm
  • Warranty: 5 Years
  • Country of Manufacture: Malaysia

Datasheets

Datasheet
