Description
Diode battery isolators allow simultaneous charging of two or more batteries from one alternator, without connecting the batteries together. Discharging the accessory battery for example will not result in also discharging the starter battery.
The Argo Battery Isolators feature a low voltage drop thanks to the use of Schottky diodes: at low current the voltage drop is approximately 0,3 V and at the rated output approximately 0,45 V.
It is fitted with a compensation diode that can be used to slightly increase the output voltage of the alternator. This compensates for the voltage drop over the diodes in the isolator.
Installation should be conducted by a professional as simply inserting the isolator in the cabling between the alternator and the batteries will slightly reduce charge voltage. The result can be that batteries are not charged to the full 100% and age prematurely.
Alternator energize input
Some alternators need DC voltage on the B+ output to start charging. Obviously, DC will be present when the alternator is directly connected to a battery. Inserting a Diode or FET splitter will however prevent any return voltage/current from the batteries to the B+, and the alternator will not start.
The new ‘AC’ diode isolators feature a special current limited energize input that will power the B+ when the engine run/stop switch is closed.

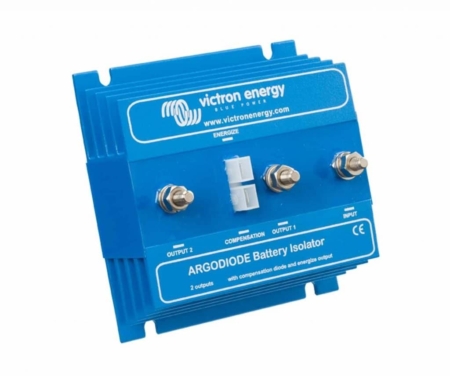

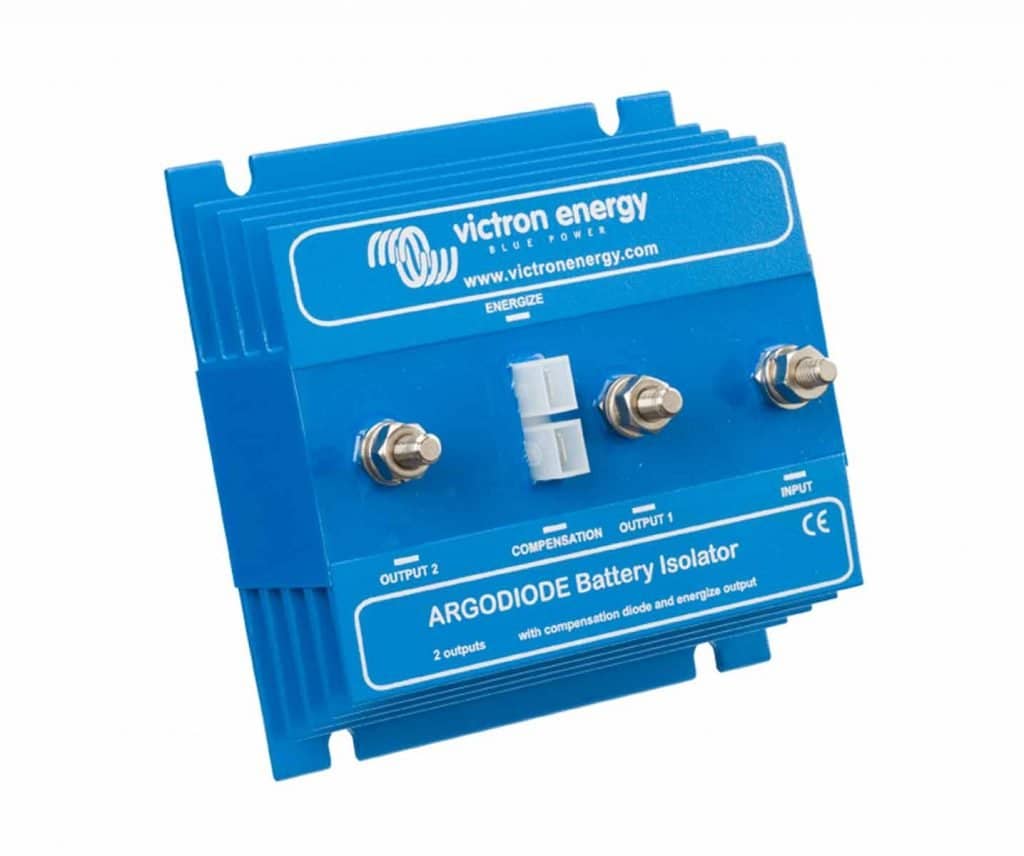

Argo Diode Battery Isolator 80-2SC
- Maximum charge current (A) 80
- Maximum alternator current (A) 80
- Number of batteries 2
- Alternator Energize Input no
- Connection M6 Studs
- Compensation diode and Energize connection 6,3 mm Faston
- Weight kg (lbs) 0,5 (1.3)
- Dimensions h x w x d in mm 60 x 120 x 75
Victron Energy Part Number ARG080202000 (R)
Key Features
- Simultaneous Charging: Allows charging of two batteries from a single alternator, preventing battery interconnection.
- Prevents Discharge: Ensures that discharging one accessory battery doesn't lead to discharging the starter battery.
- Low Voltage Drop: Uses Schottky diodes for minimal voltage drop and efficient charging.
- Compensation Diode: Features a compensation diode to slightly enhance alternator output voltage.
- Special Energize Input: Incorporates a current-limited energize input for alternator powering.
- Professional Installation Recommended: To avoid reduced charge voltage and potential premature aging of batteries.
Specifications
- Brand: Victron Energy
- Manufacturer Part Number: ARG080202000R
- Maximum Charge Current (A): 80
- Maximum Alternator Current (A): 80
- Number Of Batteries: 2
- Connection: M6 Studs
- Compensation Diode & Energize Connection: 6.3mm Faston
- Dimensions (mm): H60 x W120 x D75
- Weight (kg): 0.5
- Warranty: 5 Years
- Country of Manufacture: India
