Description

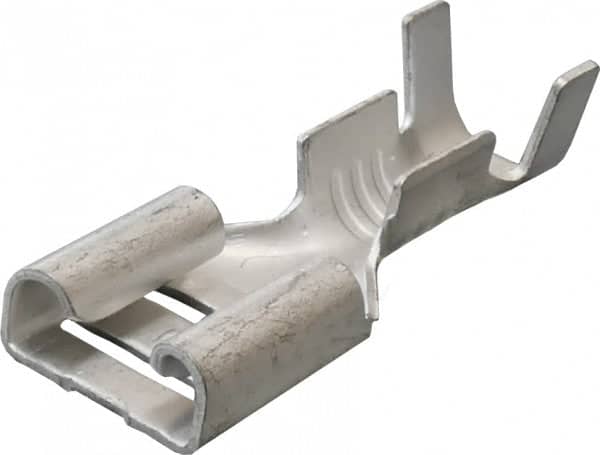

The Uninsulated Spade 6.3mm Connector is expertly crafted from high-quality brass, delivering long-lasting and reliable electrical connections. Suitable for a wide range of applications, including automotive systems, electrical cable installations, industrial controls, communication equipment, power supplies, and HVAC systems, these connectors ensure secure and permanent connections through crimp termination.
With compatibility for wire sizes ranging from 10 AWG to 22 AWG (or 0.5mm² to 1.5mm²), these connectors offer versatility across multiple industries. The 6.35mm tab width and 0.8mm tab thickness make it an ideal fit for various electrical systems, ensuring efficient transmission due to the connector’s excellent conductivity. Additionally, its brass construction provides durability and reliability, while the tin plating adds an extra layer of protection for long-term use.
Key Features
- High-Quality Brass Construction: Ensures durability and long-lasting performance.
- Wide Wire Size Compatibility: Supports wire sizes from 10 AWG to 22 AWG (0.5mm² to 1.5mm²).
- Crimp Termination: Provides easy and secure mating for reliable connections.
- Versatile Applications: Suitable for use in automotive systems, industrial controls, HVAC systems, and more.
- Professional Appearance: Color-coded connectors for easy identification.
- Excellent Conductivity: Offers efficient electrical transmission for various systems.
Specifications
- Attribute: Value
- Type: Receptacle
- Minimum Wire Size (mm²): 0.5mm²
- Maximum Wire Size (mm²): 1.5mm²
- Tab Size: 0.8 x 6.35mm
- Tab Width: 6.35mm
- Tab Thickness: 0.8mm
- Minimum Wire Size (AWG): 22AWG
- Maximum Wire Size (AWG): 16AWG
- Termination Method: Crimp
- Contact Material: Brass
- Contact Plating: Tin
- Wire Size Range: 0.5mm² to 1.5mm² (22 to 16 AWG)
- Overall Length: 7.65mm
