Description

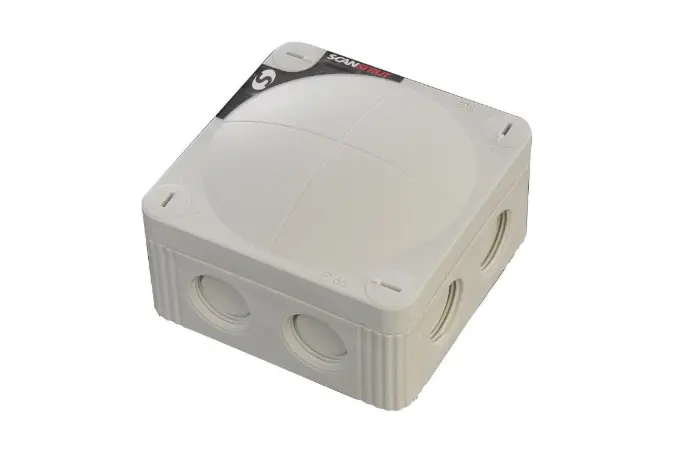

The Scanstrut Waterproof Electrical Junction Box SB-8-5 is the perfect solution for creating waterproof electrical connections in marine environments. This heavy-duty junction box is constructed from marine-grade polypropylene, ensuring long-lasting durability even in harsh conditions. It features five screw-down terminals, offering five separate electrical terminations for all your wiring needs.
Ideal for installations in lockers, lazarettes, and tender bays, this junction box allows for easy cable fitting using a spring-loaded retention system, which holds the cables securely without causing damage. The modular terminal blocks can be fitted individually or connected together depending on the number of terminations needed. Unlike other designs where terminal blocks may float, this box ensures secure connections.
To achieve IP67 waterproof rating, the junction box requires additional SB-2G cable seals (sold separately). The box comes with self-tapping screws for installation and includes an installation bracket for quick and easy fitting as well as removal for inspection.
Key Features
- Marine-Grade Polypropylene Construction – Built to withstand demanding marine environments.
- Five Screw-Down Terminals – Offers five terminations for electrical wiring.
- Spring-Loaded Retention System – Ensures cables are securely held without damage.
- IP67 Waterproofing – Requires additional SB-2G cable seals for full waterproof installation.
- Modular Terminal Blocks – Can be individually fitted or connected together for flexible installation.
- Compact Design – Dimensions: 85 x 85 x 50mm (3.35 x 3.35 x 2 inches), perfect for tight spaces.
- Easy Installation – Supplied with self-tapping screws and an installation bracket for quick setup.
Specifications
- Product Name: Scanstrut Waterproof Electrical Junction Box 5 Way SB-8-5
- Material: Marine-Grade Polypropylene
- Terminal Blocks: 5 screw-down terminals, 5 terminations
- Waterproof Rating: IP67 (requires SB-2G seals for full waterproofing)
- Dimensions: 85 x 85 x 50mm (3.35 x 3.35 x 2 inches)
- Required Accessories: SB-2G Cable Seals (for IP67 waterproofing)
- Installation Hardware: Self-tapping screws, Installation bracket
- Retention System: Spring-loaded – Holds cables securely without damage
- Application: Ideal for marine environments, lockers, lazarettes, tender bays
