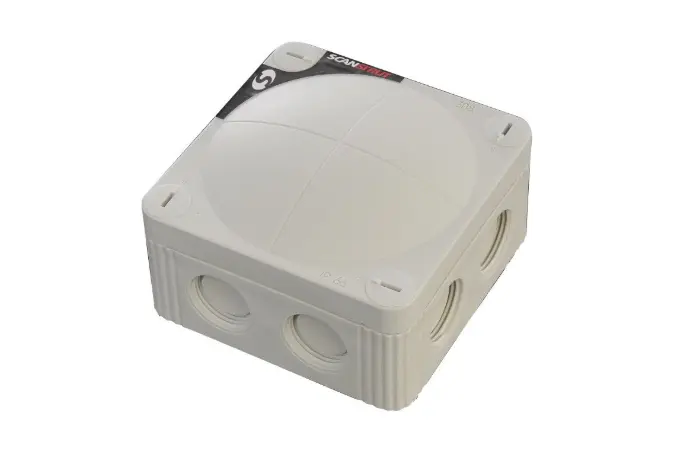

Scanstrut Waterproof Electrical Junction Box 10 way SB-8-10

The Scanstrut Waterproof Electrical Junction Box SB-8-10 is the ideal solution for multiple cable connections in marine environments. Constructed from high-quality, marine-grade polypropylene, this robust junction box ensures secure, reliable connections even in demanding conditions. It comes with 10 screw-down terminals, offering 10 separate terminations for your electrical wiring.

Designed for installation in lockers, lazarettes, and tender bays, the junction box is easy to install with self-tapping screws and comes with a convenient installation bracket. The spring-loaded retention system ensures that cables stay securely in place without damaging the wires, unlike other designs that leave terminal blocks floating. For IP67-rated waterproof installation, the SB-2G cable seals (sold separately) are required, offering additional protection against water ingress.

Ideal for both new installations and maintenance work, the junction box allows for easy access and inspection. The modular terminal blocks are removable for easy fitting, ensuring a quick setup with secure, tight connections every time.

Key Features

• 10 Screw-Down Terminals: Offers 10 separate electrical terminations for a range of wiring connections.
• Marine-Grade Polypropylene Construction: Built to withstand harsh marine environments, offering excellent durability.
• Spring-Loaded Retention System: Ensures secure, damage-free cable connections.
• IP67 Waterproofing: Requires additional SB-2G cable seals for full IP67 waterproof installation.
• Modular Terminal Blocks: Terminal blocks can be individually fitted or connected together, preventing floating blocks for secure connections.
• Compact Design: Dimensions: 85 x 85 x 50mm (3.35 x 3.35 x 2 inches), suitable for tight spaces.
• Installation Convenience: Supplied with self-tapping screws and an installation bracket for quick fitting and easy removal for inspection.

Specifications

• Product Name: Scanstrut Waterproof Electrical Junction Box 10 Way SB-8-10
• Material: Marine-Grade Polypropylene
• Terminal Blocks: 10 screw-down terminals, 10 terminations
• Waterproof Rating: IP67 (requires SB-2G seals for full waterproofing)
• Dimensions: 85 x 85 x 50mm (3.35 x 3.35 x 2 inches)
• Required Accessories: SB-2G Cable Seals (for IP67 waterproofing)
• Installation Hardware: Self-tapping screws, Installation bracket
• Retention System: Spring-loaded: Holds cables securely without damage
• Application: Ideal for marine environments, lockers, lazarettes, tender bays
