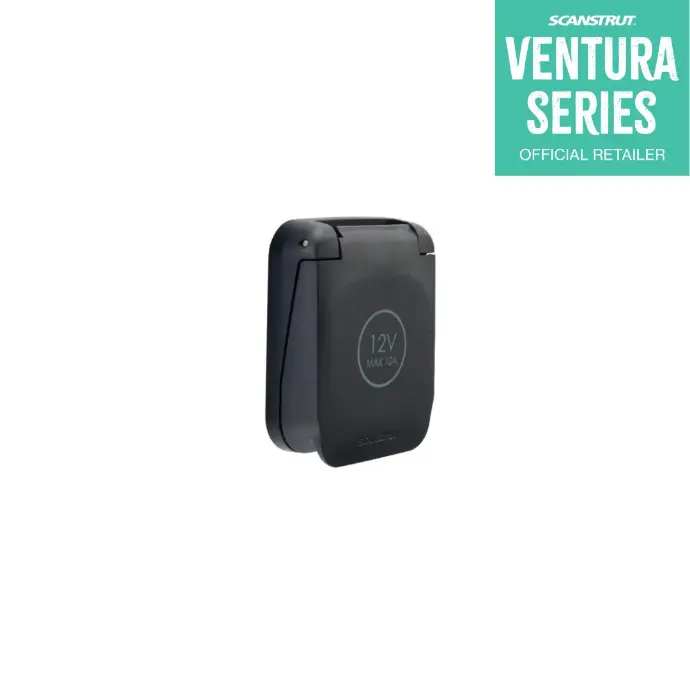

Scanstrut Ventura Series - 12V Power Outlet - SC-V-DC1

Built for those who live life outdoors, the Ventura Series 12V Power Outlet from Scanstrut provides rugged, safe and convenient access to DC power in any mobile setup. Whether you're an overlander, vanlifer, or adventurer travelling off-grid, this outlet ensures your portable fridges, compressors, lighting and other 12V appliances are always powered and ready.

With its low-profile design, marine-grade materials, and IP68/IP69K waterproof rating (when closed), the outlet is engineered to endure tough environments, from wet coastal routes to dusty mountain trails. The spring-loaded lid keeps the port sealed and protected from the elements, while the standard 32mm installation allows for easy integration in tight spaces.

Backed by Scanstrut’s reputation for quality and performance, the Ventura Series is the perfect addition to any outdoor, marine or automotive electrical system.

Key Features

• Designed for 12V systems (10-15V DC)
• 150W / 10A maximum power output
• IP68 / IP69K waterproof rating when closed
• Click-to-close spring-loaded lid for secure protection
• 90° bump feature holds the lid open during use
• Compact, low-profile design saves space in small installations
• Corrosion-resistant construction with marine-grade 316 stainless steel hardware
• Simple installation using a standard 32mm (1.25") holesaw
• Ideal for use with compressors, fridges, cool boxes, inverters and 12V accessories

Specifications

• Input Voltage: 12V system (10-15V DC)
• Output Power: 150W / 10A max
• Input Current (max): 10A
• Mounting Hole Size: 32mm (1.25")
• Install Depth: 47.8mm (1.88")
• Ingress Protection: IP68 / IP69K (lid closed)
• Materials: Corrosion-resistant, marine-grade
• Lid Mechanism: Spring-loaded with 90° bump hold
