Description

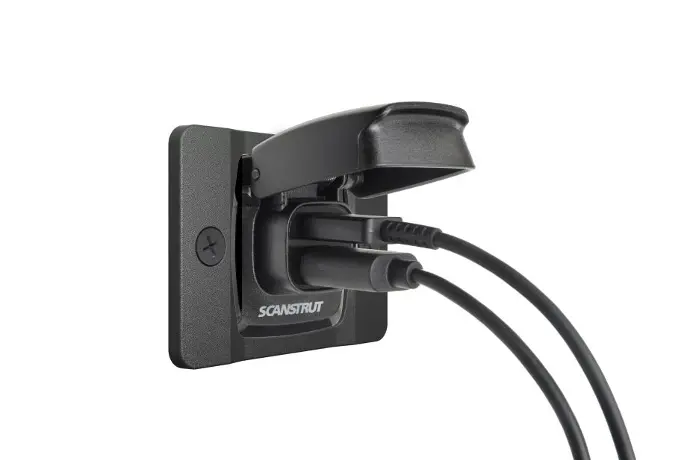

The Scanstrut Flip Pro with Front Fit Bezel is the next-generation USB charging solution for marine and outdoor use. Designed to accommodate 12V or 24V electrical systems, it features dual charging ports – one USB-A and one USB-C – for maximum compatibility and power delivery. The unit offers rapid charging performance, providing up to 36W on 12V systems and a remarkable 60W on 24V systems, making it powerful enough to fast-charge laptops and large tablets.
This front-fit version is ideal for applications where rear access to mounting panels is restricted. The front bezel allows for quick, secure installation from the front side, using screws, making it a versatile choice for a wide range of boats and vehicles.
When not in use, the spring-loaded waterproof cover ensures the ports are sealed against water and dirt (IPX4-rated). When charging, the cover locks open to protect cables from stress or dislodgement. Engineered with marine-grade materials, including 316 stainless steel components, UV resistance, and an anti-corrosion coating, the Flip Pro stands up to harsh outdoor conditions.
Its compact footprint matches standard USB socket sizes, making it easy to upgrade or retrofit older chargers while ensuring full compatibility with power-hungry modern devices.
Key Features
- Front-fit bezel design allows installation from the front when rear access is restricted
- Ultra-fast dual charging via USB-C (60W max) and USB-A (36W max)
- IPX4 waterproof with spring-loaded cover for protection against spray and washdowns
- Compact footprint fits standard USB socket cut-outs (29mm / 1 1/8”)
- Marine-grade construction with UV resistance and anti-corrosion protection
- Ideal for modern laptops, tablets, and phones, with simultaneous charging of two devices
- Compatible with 12V and 24V systems
- Includes 316 stainless steel hinge and spring for durability in harsh environments
Specifications
- Model: SC-USB-F2
- Input Voltage: 10–32V DC (12/24V systems)
- Input Current: Max 6A (recommended 10A fuse)
- USB-C Output (12V system): 5V⎓3A, 9V⎓3A, 12V⎓3A (36W max)
- USB-C Output (24V system): 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3A (60W max)
- USB-A Output: 5V⎓1.5A, 9V⎓1.5A, 12V⎓1.5A / 3A (36W max)
- Standby Power Draw: 0.01W
- Mounting Hole Size: 29mm (1 1/8")
- Waterproof Rating: IPX4 (with cover closed)
- Materials: Marine-grade with 316 stainless steel components
- Certifications: CE, FCC, UKCA, C-Tick, ROHS
- Colour: Black
