Description

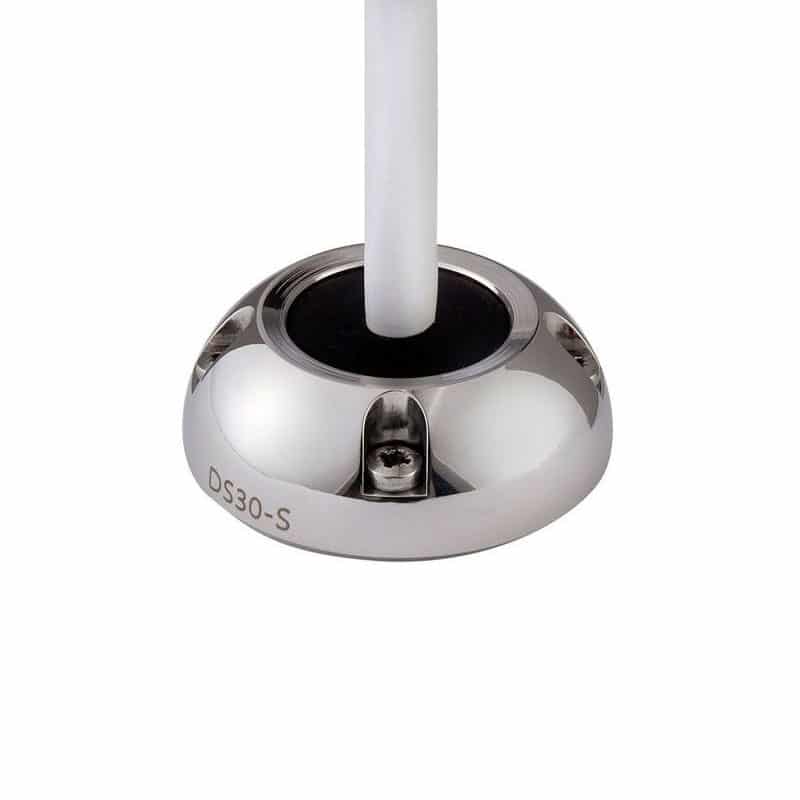

The Scanstrut DS30-S Stainless Steel Vertical Entry Cable Seal is an ideal solution for creating watertight and durable seals for cables ranging from 9-14mm (0.35"-0.55") in diameter, and connectors up to Ø30mm (1.18"). Made of high-quality stainless steel, this cable seal offers enhanced strength, corrosion resistance, and impact protection, making it perfect for marine and industrial applicati
Key Features
- Watertight Installation: Features a tapered bung that creates a watertight seal, ensuring a 100% waterproof installation. Each unit includes a closed-cell base seal, making it IP68 certified for use in harsh, wet environments.
- Easy & Reliable Installation: Captive nuts in the base allow for quick and easy assembly, while also ensuring that installations are reliable and repeatable. The seal comes with both pre-drilled and blank inner seals, simplifying the installation process.
- No Need to Remove Cable Connectors: The split-seal option enables installation without the need to remove connectors from cables, offering a convenient and efficient setup.
- Multi-Functional Dome Shape: The aesthetic dome-shaped profile of the seal not only provides a stronger and impact-resistant design, but the outer dome also acts as an additional water shield, providing further protection from external elements.
- Stainless Steel Durability: Made from high-quality stainless steel, this cable seal offers superior corrosion resistance, making it ideal for harsh environments such as marine or offshore applications.
Specifications
- Feature: Specification
- Cable Diameter Compatibility: 9-14mm (0.35"-0.55")
- Connector Size Compatibility: Up to Ø30mm (1.18")
- Profile Shape: Aesthetic dome-shaped
- Material: Stainless Steel
- Waterproof Rating: IP68 (fully waterproof)
- Assembly: Captive nuts for easy and repeatable assembly
- Included Components: Pre-drilled and blank inner seals
