Description

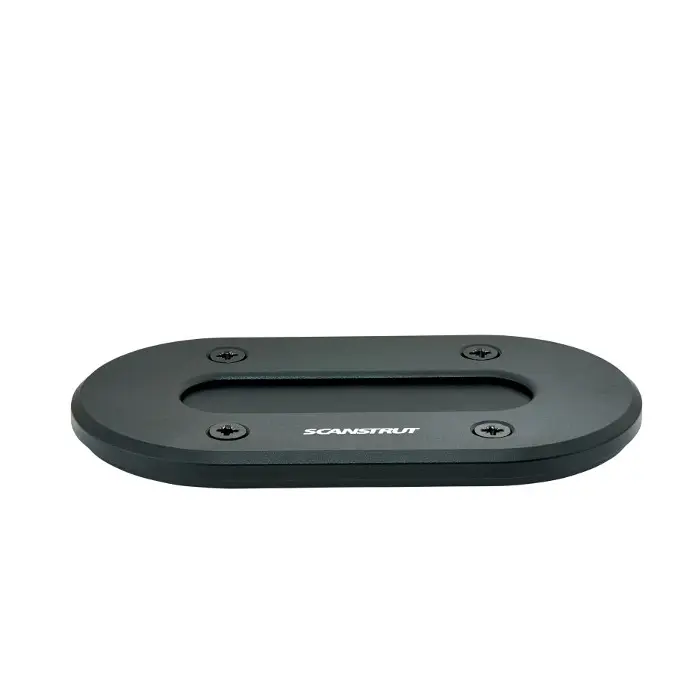

The DS-LP-MULTI-BLK Low-Profile Cable Seal is the perfect solution for securing multiple cables in outdoor environments while maintaining a clean and seamless appearance. This innovative seal is designed to accommodate cables up to Ø15mm (0.59"), providing a compact and durable solution for complex installations. The marine-grade aluminium construction offers superior corrosion resistance and is built to withstand the toughest weather conditions, ensuring long-lasting durability and performance.
Its low-profile design reduces mounting height by 71% compared to the DS-MULTI-P-BLK, giving your installation a more refined and flush finish. The unit guarantees a 100% watertight seal, featuring a tapered bung and closed-cell base for maximum protection. It has passed stringent IP68 testing to ensure reliable performance in outdoor environments, protecting your cables and electronics from water ingress.
For added convenience, the captive nuts simplify installation, and the seal comes with a blank bung that can be custom drilled to match your specific cable needs. This flexibility, combined with the split-seal option, allows for quick and easy installations without removing cable connectors. Perfect for use in solar panels, light bars, and rooftop electronics, the DS-LP-MULTI-BLK offers both superior protection and a sleek appearance.
Key Features
- IP68 Waterproof.
- Designed for multiple cables up to 15mm (0.59”).
- UV Resistant.
- Constructed from marine-grade aluminium.
- No messy sealant, ensuring a tidy finish.
- Simplified installation that saves you time and effort.
- Guaranteed 100% watertight seal.
- Perfect for solar panels, light bars, rooftop electronics, and more.
- Each cable seal is installed by using a hole saw keeping seal technology below the mounting surface.
Specifications
- Cable Diameter Range: Multiple cables up to Ø15mm (0.59")
- Material: Marine-Grade Aluminium
- Waterproof Rating: IP68 (100% Watertight)
- Mounting Height Reduction: 71% compared to DS-MULTI-P-BLK
- UV Resistance: Yes
- Seal Type: Tapered bung with closed-cell base seal
- Installation Method: Captive nuts, blank bung for custom drilling
- Ideal for Applications: Solar panels, light bars, rooftop electronics
