Description

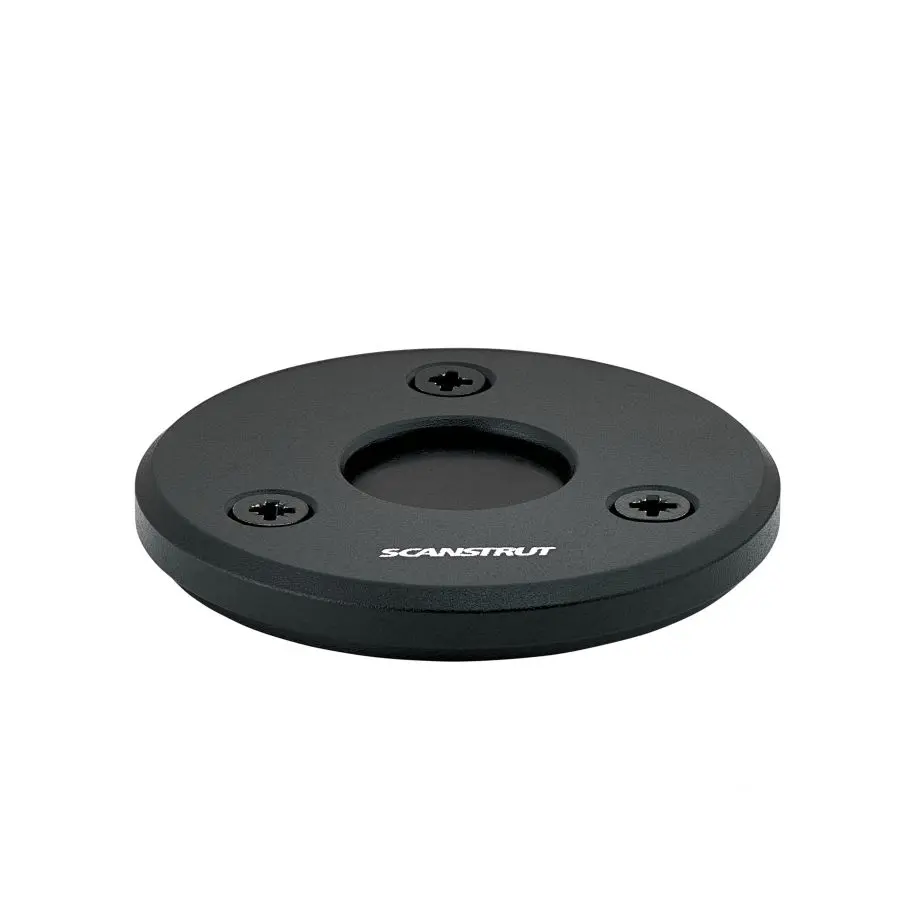

The DS-LP-21B-BLK Low-Profile Cable Seal is designed to accommodate cables ranging from 9-14mm and connectors up to Ø21mm, ensuring a seamless and 100% watertight installation. Made from marine-grade aluminium, it offers superior corrosion resistance and durability, making it the perfect choice for outdoor environments. Its low-profile design reduces the mounting height by 68%, delivering a sleek and refined finish.
Key Features
- IP68 Waterproof.
- Designed for 9-14mm cables (0.35"-0.55").
- UV Resistant.
- Constructed from marine-grade aluminium.
- No messy sealant, ensuring a tidy finish.
- Simplified installation that saves you time and effort.
- Guaranteed 100% watertight seal.
- Perfect for solar panels, light bars, rooftop electronics, and more.
- Each cable seal is installed by using a hole saw keeping seal technology below the mounting surface.
Specifications
- FeatureDetailsCable Range9-14mm (0.35"-0.55")Connector DiameterUp to Ø21mm (0.83")MaterialMarine-grade aluminiumWaterproof RatingIP68UV ResistanceYesMounting Height Reduction68% compared to DS21B-P-BLKSeal TypeTapered bung with closed-cell baseInstallation MethodHole saw required
- Cable Range: 9-14mm (0.35"-0.55")
- Connector Diameter: Up to Ø21mm (0.83")
- Material: Marine-grade aluminium
- Waterproof Rating: IP68
- UV Resistance: Yes
- Mounting Height Reduction: 68% compared to DS21B-P-BLK
- Seal Type: Tapered bung with closed-cell base
- Installation Method: Hole saw required
