Description
The ATMOS 12V Integrated Air Station offers fast, hands-free inflation and deflation for your watercraft toys, including SUPs, inflatables, and towables. Designed with brushless technology, it provides quiet, reliable, and efficient air pumping at the push of a button. Featuring a two-stage pump, ATMOS switches seamlessly between high-volume and high-pressure modes to accommodate various inflatable items, from large towables to high-pressure SUPs.

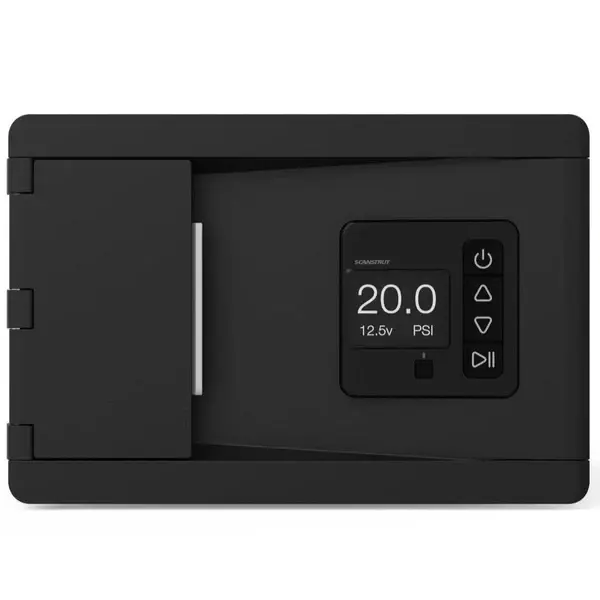

Engineered for the demanding marine environment, ATMOS is constructed with marine-grade components, including an IPX6 waterproof rating and ignition protection compliant with ISO 8846 and SAE J1171 standards. Its compact size allows it to be panel-mounted in various locations on the boat, such as seating areas or consoles. The LCD display with soft-touch buttons allows easy operation, while the long 2.5m hose and six valve attachments provide the flexibility to inflate and deflate a wide range of equipment.
This air station is built to last with conformal-coated electronics, reverse polarity protection, and a heavy-duty sun cover for extra durability. Maximise your time on the water with ATMOS—a truly revolutionary air station for any family boating experience.
Key Features
- Effortless Inflation and Deflation – Perfect for SUPs, inflatables, towables, and more.
- Two-Stage Pump – Stage 1 for high-volume, low-pressure inflation (0-1 PSI) and Stage 2 for high-pressure, low-volume (up to 20 PSI).
- LCD Display – Features PSI/BAR switch, pre-set pressure, and voltage readout.
- Marine-Grade Build – IPX6 waterproof with ignition protection (ISO 8846, SAE J1171).
- Supplied with 2.5m Hose and Six Attachments – Flexible for a variety of inflatables.
- Compact and Shallow Design – Easily fits into panels such as seating or consoles.
- Soft Touch Buttons – Tactile control even with wet hands.
- Heavy-Duty Sun Cover – Protects the air station from harsh marine elements.
- Auto Shut-off – Automatically stops at target pressure for safety and convenience.
Specifications
- Dimensions: 198 x 297 x 87mm (7.8" x 11.69" x 3.44")
- Input Voltage: 12V Battery System (11.5 – 14V)
- Max Pressure: 20 PSI / 1.37 BAR
- Max Current Draw: 12A (140W)
- Standby Power Draw: 0.1W Max
- Waterproof Rating: IPX6 (front and back)
- Two-Stage Pump: Stage 1 = 0 – 1 PSI, Stage 2 = 1.1 – 20 PSI
- Max Volume (0-1 PSI): 350 LPM / 12.3 CFM
- Max Volume (1-20 PSI): 70 LPM / 2.5 CFM
- Ambient Operating Temp: -20ºC to +50ºC
- Installation Depth: Minimum cavity depth: 100mm (3.9")
- Installation Angle: +10º to -30º from vertical
- Hose Length: 2.5m (8ft), includes net storage bag
- Valve Attachments: Boston Valve, C7 Valve, H3/HR Valve, Pinch Valves, 805 Valve
- Protection Features: Reverse polarity, short-circuit, under voltage, overload, over temp
- Certifications: CE, ROHS, UN ECE R10, UKCA
