Description

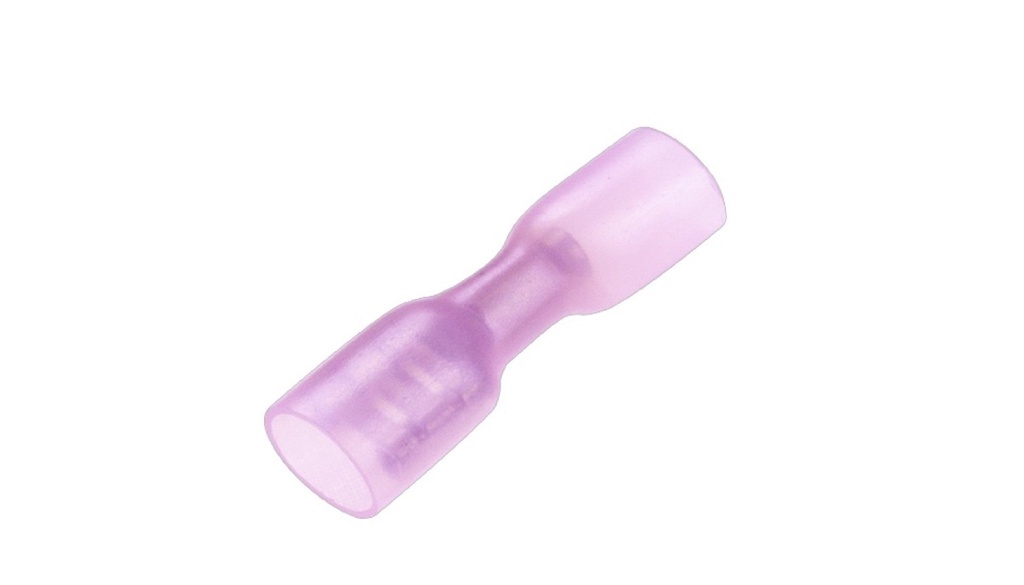

The Red Heatshrink Female Spade 6.3mm Fully Insulated terminal offers a reliable and long-lasting solution for making secure electrical connections. With a fully insulated design and adhesive-lined heatshrink tubing, it ensures an airtight, moisture-resistant seal that prevents corrosion and improves connection longevity.
Made from durable materials including brass, tin, polyethylene, and copper, this spade terminal operates effectively in harsh environments, withstanding temperatures from -45°C to +125°C. The terminal is quick and easy to install, requiring minimal insertion force and providing a secure crimp that holds fast under vibration and stress.
Ideal for automotive, marine, industrial, and general-purpose wiring applications, this terminal supports a maximum voltage rating of 300V and is designed to fit standard 6.3mm male spade connectors.
Key Features
- Fully Insulated – Offers complete electrical insulation for safety and reliability
- Adhesive Lined – Heat-activated adhesive creates a moisture-resistant seal
- Durable Construction – Made with brass core and tin plating for corrosion resistance
- Wide Temperature Range – Operational from -45°C to +125°C
- Efficient Heat Shrink – Shrinks at +125°C to 180°C for a tight, secure fit
- Easy Crimping – Requires minimal force for fast installation
- Versatile Use – Suitable for automotive, marine, and general electrical applications
Specifications
- Attribute: Value
- Product Type: Heatshrink Female Spade Terminal
- Terminal Size: 6.3mm
- Insulation Type: Heatshrink with hot melt adhesive
- Materials: Brass, Tin-Plated, Polyethylene
- Colour: Red
- Max Voltage Rating: 300V
- Operating Temp. Range: -45°C to +125°C
- Shrink Temp. Range: +125°C to 180°C
- Application: Electrical terminations – indoor/outdoor environments
- Connection Type: Crimp
