Description

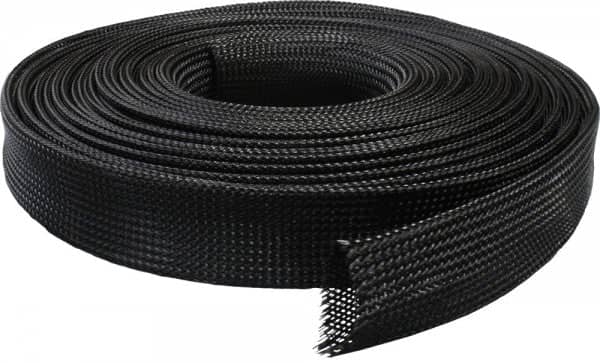

The 20mm Expandable Braided Sheathing provides robust protection for cables and hoses in industrial environments. Crafted from flame retardant and halogen-free polyester (PET), this sheathing ensures safety and longevity in harsh conditions. Its expandable braid construction allows it to fit a wide range of bundle sizes, with an expandable range from 14mm to 30mm in diameter. The open weave design facilitates easy installation over bundles, making it suitable for applications in cable harnesses, automatic equipment, railways, and general manufacturing. This sheathing not only offers excellent abrasion resistance but also withstands temperatures from -50°C to 150°C and has a high tensile strength of 100,000 PSI. It is UV resistant and features a VW-1 flammability rating, ensuring reliable performance across various environments.
Key Features
- Flame Retardant & Halogen-Free: Enhances safety in critical applications
- Durable Abrasion Resistance: Protects cables and hoses from wear and tear
- Expandable Design: Fits a range of bundle sizes with an expandable diameter from 14mm to 30mm
- Easy Installation: Open weave construction for simple application
- Wide Temperature Range: Operates effectively from -50°C to 150°C
- High Tensile Strength: Provides strong and reliable protection with 100,000 PSI
- UV Resistance: Resists damage from sunlight
- RoHS Compliant: Meets environmental safety standards
Specifications
- Feature: Specification
- Material: Polyester (PET)
- Operating Temperature Range: -50°C to 150°C
- Melt Point: 250°C +/- 5
- Tensile Strength: 100,000 PSI
- Flammability Rating: VW-1
- UV Resistance: Excellent
- Anti-Abrasion: Yes
- RoHS Compliant: Yes
Size Guide
Size guide:
- Part No: Nominal Size Flat Width (mm)
- BH4: 4
- BH6: 6
- BH8: 8
- BH10: 10
- BH12: 12
- BH14: 14
- BH16: 16
- BH20: 20
- BH25: 25
- BH32: 32
- BH38: 38
- BH50: 50
