Description

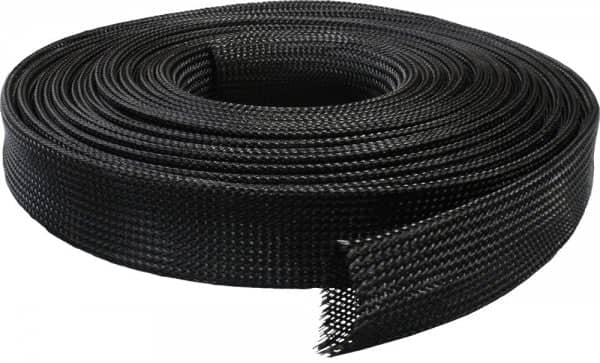

The 16mm Expandable Braided Sheathing provides robust protection for cables and hoses in demanding environments. Constructed from flame retardant and halogen-free polyester (PET), this sheathing is designed to handle a wide range of industrial applications while enhancing safety. The expandable braided design allows it to accommodate bundles with diameters ranging from 10mm to 27mm, making it versatile and easy to install. With an open weave construction, it ensures straightforward application over various cables and hoses. This sheathing is particularly suitable for use in cable harnesses, automatic equipment, railways, and general manufacturing where durability and protection are crucial. It operates effectively across a broad temperature range of -50°C to 150°C, with a high tensile strength of 100,000 PSI and a VW-1 flammability rating. Additionally, it features excellent UV resistance and anti-abrasion properties, and is RoHS compliant.
Key Features
- Flame Retardant & Halogen-Free: Enhances safety in critical applications
- Durable Abrasion Resistance: Provides long-lasting protection against wear and tear
- Expandable Design: Fits bundles with diameters from 10mm to 27mm
- Easy Installation: Open weave construction for simple application
- Wide Temperature Range: Operates from -50°C to 150°C
- High Tensile Strength: Withstands stress with 100,000 PSI
- UV Resistance: Resists degradation from sunlight
- RoHS Compliant: Meets environmental safety standards
Specifications
- Feature: Specification
- Material: Polyester (PET)
- Operating Temperature Range: -50°C to 150°C
- Melt Point: 250°C +/- 5
- Tensile Strength: 100,000 PSI
- Flammability Rating: VW-1
- UV Resistance: Excellent
- Anti-Abrasion: Yes
- RoHS Compliant: Yes
Size Guide
- Part No: Nominal Size Flat Width (mm)
- BH4: 4
- BH6: 6
- BH8: 8
- BH10: 10
- BH12: 12
- BH14: 14
- BH16: 16
- BH20: 20
- BH25: 25
- BH32: 32
- BH38: 38
- BH50: 50
