Description

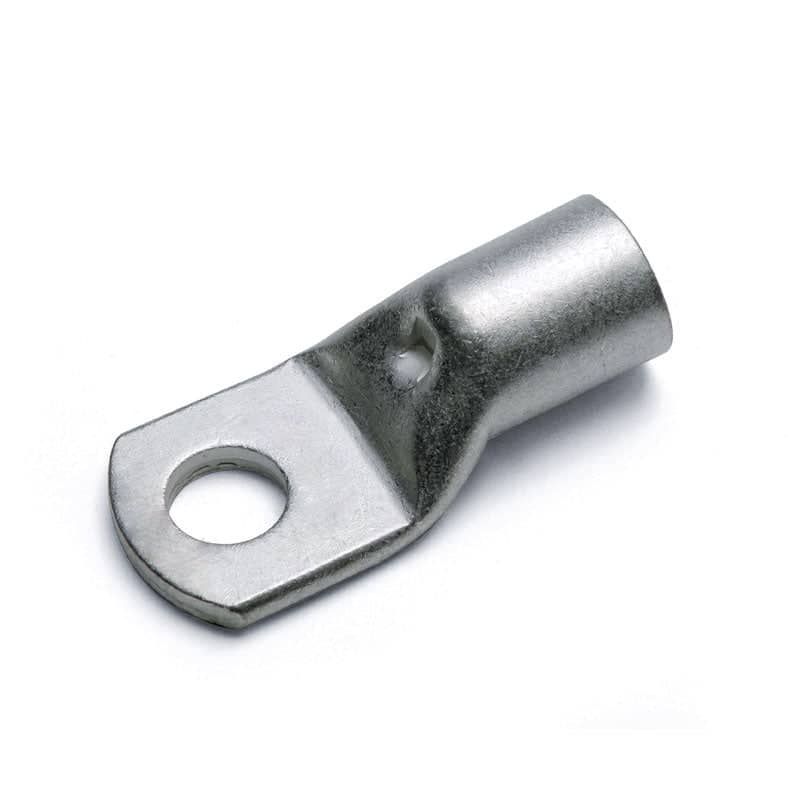

The Copper Tube Terminal R70-8 is engineered for high-capacity electrical applications, offering secure and reliable termination for 70mm² cables. Constructed from high-purity copper and bright electro tin-plated, this terminal combines superior conductivity with excellent corrosion resistance, making it ideal for harsh environments.
With an internal diameter of 12mm, the terminal provides a precise fit over large-gauge cables. The 8mm stud hole allows for easy connection to distribution blocks, power equipment, or heavy-duty terminals. This terminal is part of a broader range, with multiple stud hole sizes available to suit different installation requirements.
Key Features
- Designed for 70mm² cables with a secure 8mm stud hole
- Tin-plated copper ensures long-lasting corrosion resistance
- High conductivity for efficient power transmission
- Robust mechanical connection suitable for demanding environments
- Available in multiple stud sizes to match various applications
- Ideal for industrial, commercial, and high-current systems
Specifications
- Product Code: R70-8
- Cable Size: 70mm²
- Internal Diameter: 12mm
- Stud Hole Diameter: 8mm
- Material: Copper
- Plating: Bright Electro Tin
- Available Stud Sizes: 8mm, 10mm, 12mm, 14mm, 16mm
- Application: Power Termination, Industrial Wiring
