Complete Solar Wiring Kit - 205W - 270W SMART MPPT

The Complete Solar Wiring Kit - 205W to 270W SMART MPPT provides a comprehensive, efficient, and durable solution for solar installations. Equipped with the SmartSolar MPPT 100/20 charge controller, this kit optimises energy harvesting by dynamically adjusting to changing sunlight conditions for peak performance.

With 2mm 25A Automotive Cable and 4mm TUV Solar Cable, the kit guarantees efficient power transmission. Weather-resistant components like Soudaflex 40FC bonding adhesive and a Side Entry Cable Gland ensure durability and protection against the elements. Fuse protection and MC4 connectors provide added safety and reliability, while Universal L Brackets make mounting simple and secure.

Whether for residential or mobile setups, this kit offers high performance with minimal maintenance and supports systems of up to 48V output.

Key Features

• Weatherproof Bonding Adhesive:Soudaflex 40FC provides durable, weather-resistant bonding for long-term stability.
• BLUE MPPT Technology:BlueSolar MPPT 100/20 dynamically adjusts energy harvesting for peak performance.
• Reliable Connections:MC4 Connectors ensure secure and weather-resistant connections.
• Fuse Protection: Includes a Fixing Fuse Kit for added safety and protection against electrical faults.
• Easy Installation:Universal L Brackets simplify the mounting process for multiple setups.
• Cable Entry and Sealing:Side Entry Cable Gland with two seals protects wiring from water and debris.

Specifications

• Cable Type: 4mm² TUV Solar Cable
• Cable Length: 16 metres
• Charge Controller Model: BlueSolar MPPT 100/20 (SCC110020170R)
• Input Voltage Range: Up to 48V systems
• Max Output Current: 20A
• MC4 Connectors: Secure and weather-resistant connectors
• Automotive Cable: 2 Core Round Thinwall Automotive Cable (2mm, 25A)
• Cable Length (Automotive Cable): 8 metres
• Fixing Fuse Kit: FF1: Protection for solar panel systems
• Universal L Brackets: 6 units for secure mounting
• Panel Bonding Adhesive: Black Soudaflex 40FC: Weatherproof adhesive for durable bonding
• Side Entry Cable Gland: 1 unit, 2 seals (Black)
• Weather Resistance: Designed for outdoor use and long-lasting durability
• Solar Panel Compatibility: 205W - 270W systems
• Installation Ease: User-friendly setup for quick and efficient installation

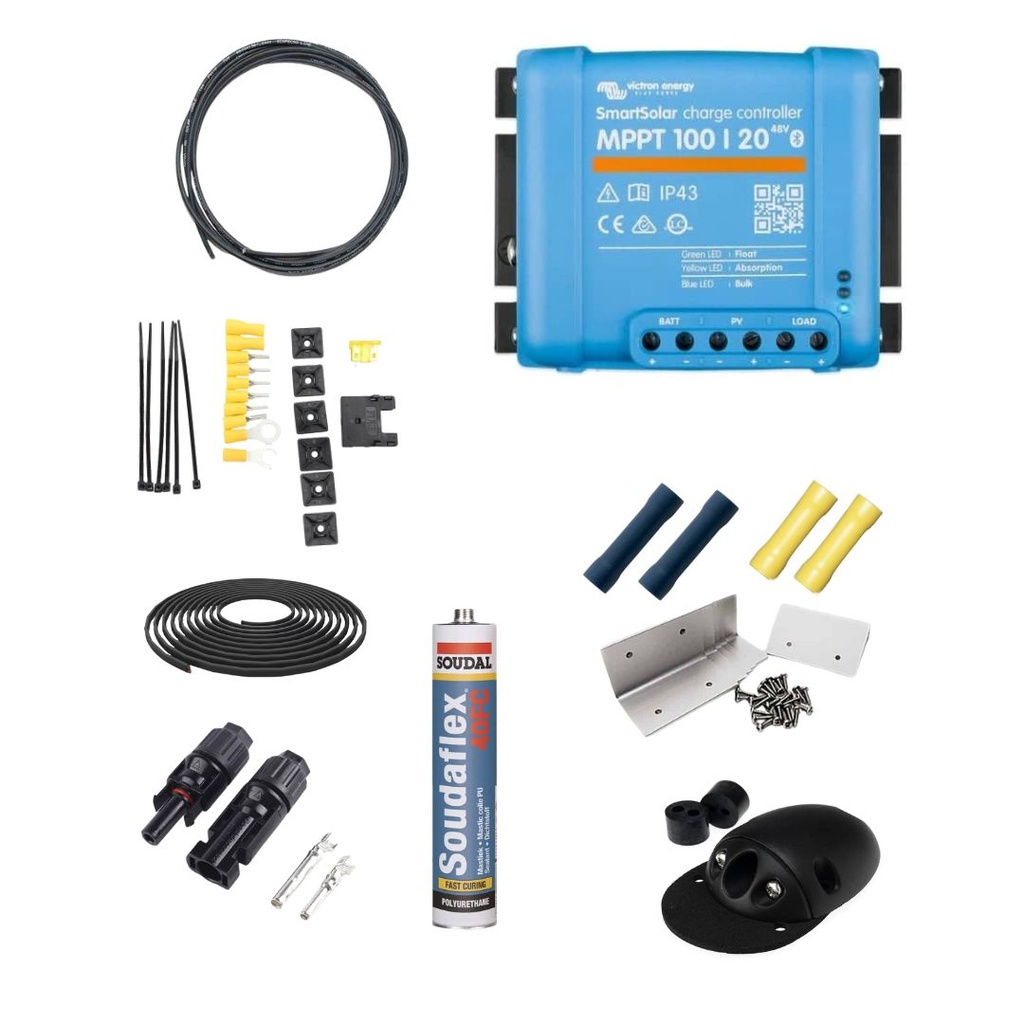

Contents

• 8m of 2 Core Round Thinwall Automotive Cable 2mm 25A
• 16m of 4mm TUV Solar Cable
• 2x Blue Butt Connector 4.0mm Single Unit
• 1x Fixing Fuse Kit For Solar Panels
• 2x MC4 Connector (Pair)
• 1x Panel Bonding Black Soudaflex 40FC
• 1x Side Entry Cable Gland 2 Seals Black
• 1x SmartSolar MPPT 100/20 (up to 48V)
• 6x Universal L Bracket
• 2x Yellow Butt Connector 5.5mm
