Description
The Complete Solar Wiring Kit White – 125W to 200W SMART MPPT is an advanced, all-in-one solution for modern solar panel setups. Featuring SmartSolar MPPT technology, this kit maximises energy harvesting by adapting to changing light conditions, ensuring optimal performance throughout the day.
With 100 metres of TUV Solar Cable, it provides ample flexibility for panel placement, while the waterproof Side Entry Cable Gland guarantees safe and weather-resistant cable management. MC4 connectors ensure secure connections, and the Fixing Fuse Kit offers added protection against electrical faults.
Installation is simple with universal L brackets, and Soudaflex 40FC bonding adhesive delivers long-lasting durability, making this kit perfect for residential, commercial, or mobile solar systems.
Key Features
- Versatile Cable Length:100 metres of TUV Solar Cable for flexible panel placement and optimal sunlight exposure.
- Waterproof Cable Entry:Side Entry Cable Gland with two seals ensures a weatherproof connection point.
- Smart MPPT Technology:SmartSolar MPPT 75/15 Retail optimises energy harvesting for maximum efficiency.
- Reliable Connections:MC4 connectors provide secure and weather-resistant panel connections.
- Fuse Protection: Includes a Fixing Fuse Kit to safeguard your system against electrical faults.
- Easy Installation:Universal L Brackets simplify mounting and support various installation options.
- Durable Bonding Adhesive:Soudaflex 40FC ensures a secure and weatherproof bond for lasting performance.
Specifications
- Component: Specification
- Cable Type: 4mm² TUV Solar Cable
- Cable Length: 100 metres (Sold by the metre)
- Charge Controller Model: SmartSolar MPPT 75/15 Retail SCC075015060R
- Input Voltage Range: 12V – 75V
- Output Voltage: 12V/24V systems
- Max Output Current: 15A
- MC4 Connectors: YJ-MC4 – Secure and weather-resistant connectors
- Automotive Cable: 2 Core Round Thinwall Automotive Cable (2mm, 25A)
- Cable Length (Automotive Cable): 8 metres
- Fixing Fuse Kit: FF1 – Provides additional protection for solar panels
- Universal L Brackets: 6 units for panel mounting
- Panel Bonding Adhesive: White Soudaflex 40FC SILSFX40
- Side Entry Cable Gland: 1 unit, 2 seals (White) – 07-A1-SE7W
- Solar Panel Compatibility: 125W – 200W systems
- Weather Resistance: All components are designed for outdoor use and durability
- Installation Ease: Includes all components required for simple and secure setup

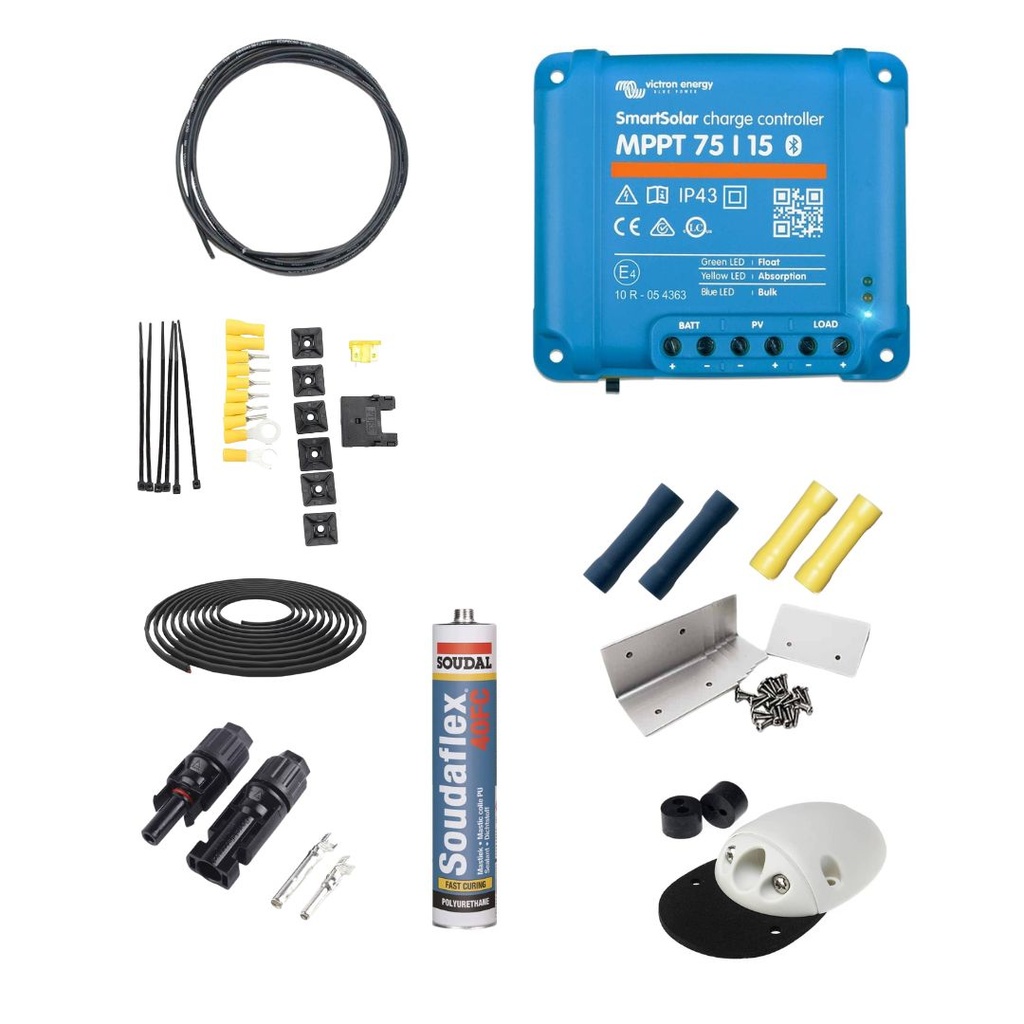

Contents
- 16x 4mm TUV Solar Cable (Sold by the metre – 100m E6S10040BK000)
- 1x Side Entry Cable Gland with 2 Seals (White – 07-A1-SE7W)
- 1x SmartSolar MPPT 75/15 Retail Charge Controller (SCC075015060R)
- 2x MC4 Connector (Pair – YJ-MC4)
- 1x Fixing Fuse Kit for Solar Panels (FF1)
- 6x Universal L Bracket (Single Unit – 1575)
- 8x 2 Core Round Thinwall Automotive Cable (2mm, 25A – C204RTW-100BRB)
- 1x Panel Bonding Adhesive (White Soudaflex 40FC – SILSFX40)
- 2x Yellow Butt Connector (5.5mm Single Unit – WT17)
- 2x Blue Butt Connector (4.0mm Single Unit – WT16)
