Authorised Victron Energy InstallerComplete Solar Wiring Kit - 125W - 200W MPPT
Excellent on Google

Complete Solar Wiring Kit - 125W - 200W MPPT

A complete solar wiring kit for 125W to 200W of panels on a campervan, motorhome or cabin roof, built around a BlueSolar MPPT 75/15 charge controller for efficient charging on grey days.The solar cable, MC4 connectors, fuse, roof gland and bonding are all in the box, so it suits a self build van conversion on a Sprinter, Transit, Ducato, Relay or Boxer.

Price range: £136.25 through £155.64Out of stock
Out of stockAsk about availability
Out of stock right nowAsk us for a lead time or a suitable alternative
Manufacturer’s warrantyGenuine stock, covered by the manufacturer’s own warranty terms
14-day returnsOn unused standard items
Tom Alderdice
Not sure it's the right size?Free 30-minute call with Tom, or ring 01539 761 467.
Book a call
Overview

About this product

Upgrade your solar panel setup with the Complete Solar Wiring Kit Black - 125W to 200W BLUE MPPT. This kit is a comprehensive solution for installing your solar system, offering premium components and the BLUE MPPT technology for efficient energy harvesting. It simplifies the installation process, improves the performance of your solar system, and ensures durability for long-term use.

Key Features

  • Versatile Cable Length: The kit includes 16 metres of 4mm TUV Solar Cable, allowing flexibility in positioning your panels for optimal sunlight exposure, ensuring maximum energy capture.
  • Efficient Bonding: Use of Soudaflex 40FC for secure panel bonding. It provides excellent weather resistance and enhances the durability of your installation, withstanding the elements over time.
  • BLUE MPPT Technology: The BlueSolar MPPT 75/15 charge controller ensures that your solar panels are working at maximum efficiency. It adapts to changing light conditions and optimises energy harvesting for the best possible performance.
  • Reliable Connectors: The included MC4 Connectors facilitate secure

Specifications

  • Cable Type: 4mm² TUV Solar Cable
  • Cable Length: 16 metres
  • Charge Controller Model: BlueSolar MPPT 75/15
  • Input Voltage Range: 12V - 75V
  • Output Voltage: 12V/24V systems
  • Max Output Current: 15A
  • Charge Controller Efficiency: Up to 98% efficiency (MPPT)
  • MC4 Connectors: Secure and weather-resistant solar panel connections
  • Automotive Cable: 2 Core Round Thinwall Automotive Cable
  • Cable Gauge: 2mm
  • Cable Amp Rating: 25A
  • Cable Length (Automotive Cable): 8 metres
  • Fixing Fuse Kit: 25A fuse for solar panel protection
  • Universal L Brackets: 6 units for panel mounting
  • Panel Bonding Adhesive: Soudaflex 40FC, Black
  • Side Entry Cable Gland: 1 unit, 2 Seals for weather-resistant cable entry
  • Butt Connectors (Blue): 2 units for wire-to-wire connections
  • Butt Connectors (Yellow): 2 units for larger wire connections
  • Solar Panel Compatibility: 125W - 200W systems
  • Weather Resistance: All components designed for durability in outdoor environments
  • Ease of Installation: Includes all necessary components for easy installation

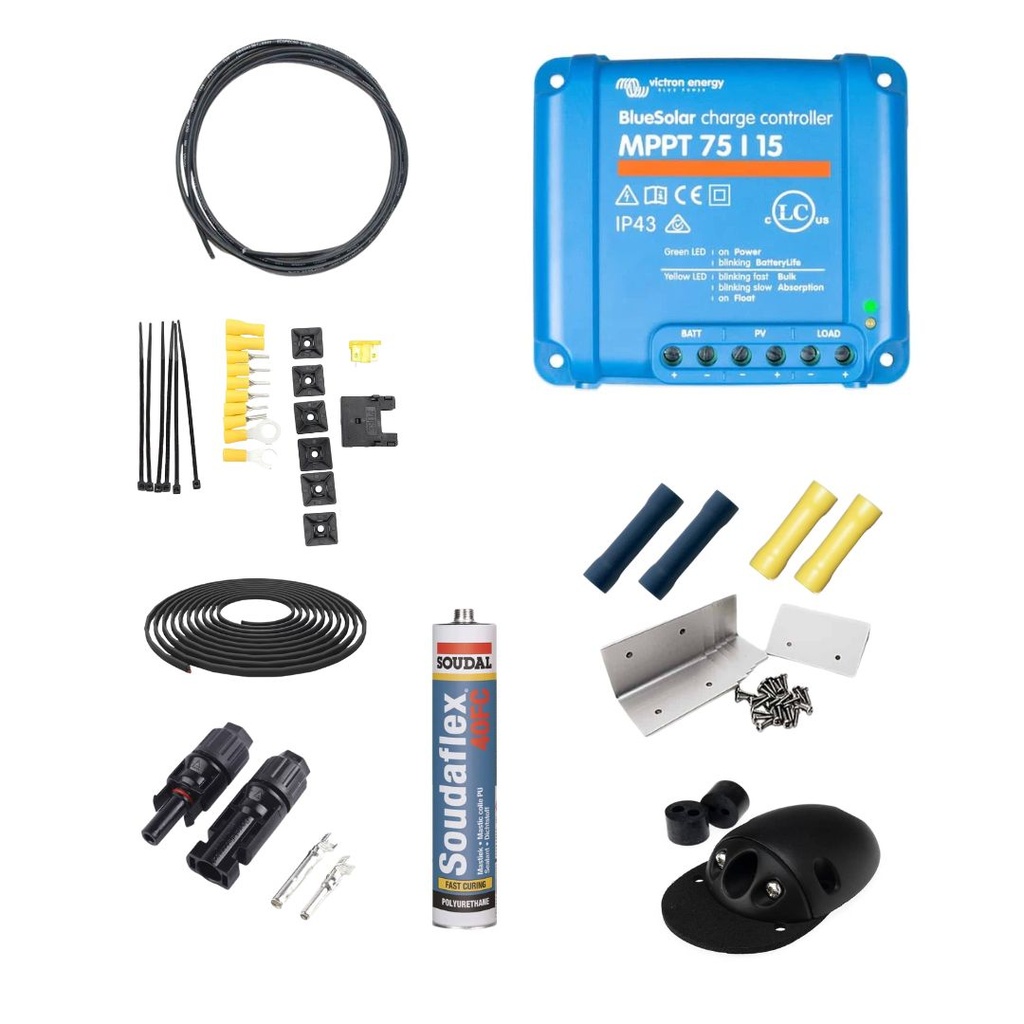

Contents

x2 Blue Butt Connector

x2 Yellow Butt Connector

8m 2 Core Round Thinwall Automotive Cable 2mm 25A

x6 Universal L Bracket

x1 Fixing Fuse Kit for Solar Panels

x2 MC4 Connector (Pair)

x1 Side Entry Cable Gland with 2 Seals (Black)

x1 Panel Bonding Black Soudaflex 40FC

16m 4mm TUV Solar Cable

x1 BlueSolar MPPT 75/15

Specifications

The numbers

Details

Colour
Black, Grey, White
