Description

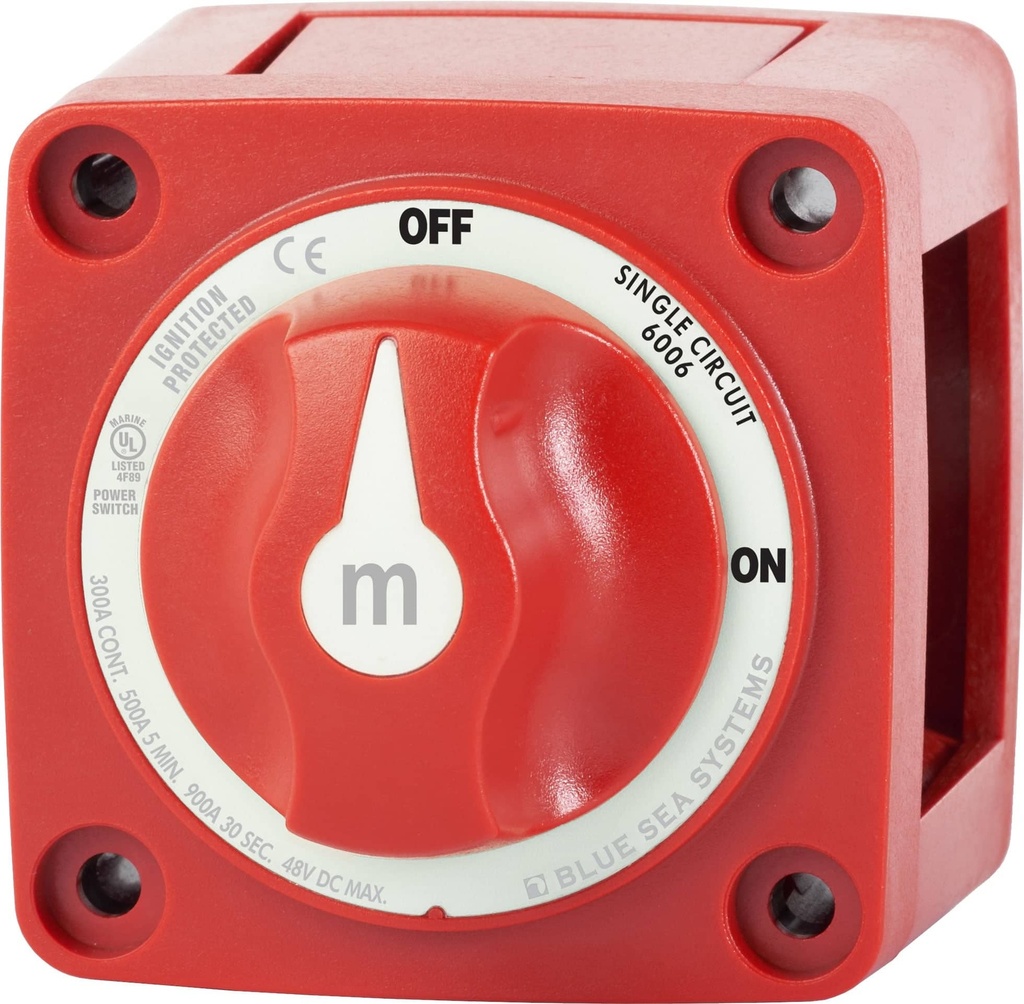

The Blue Sea Systems 6006-BSS M-Series ON/OFF Battery Switch is a compact and robust power management solution, specifically designed to switch a single battery to a single load group. With a user-friendly knob, it provides easy operation even in harsh marine environments.
Ideal for leisure or commercial vessels, this battery switch is ignition protected, making it safe for use on petrol-powered boats. Its versatile case design supports surface, front, or rear panel mounting, allowing seamless integration into new installations or retrofits.
The switch’s snap-on isolating cover adds an extra layer of safety by shielding rear electrical connections, reducing the risk of accidental shorts. With a maximum voltage rating of 48V DC and a cranking rating of 900A for 30 seconds, this switch is suitable for a wide range of marine applications.
Key Features
- Single circuit ON/OFF switch – isolates one battery to one load group
- Ignition protected – safe for use on petrol-powered boats
- Surface, front, or rear panel mounting – flexible installation options
- Knob-operated design – easy to operate and ergonomically built
- Snap-on rear cover – protects connections from accidental contact
- Durable construction – built for marine conditions with corrosion resistance
- Compact footprint – ideal for space-constrained applications
Specifications
- Product Type: Single Circuit ON/OFF
- Switch Positions: 2
- Colour: Red
- Battery Combine Function: No
- Alternator Field Disconnect: No
- Maximum Voltage: 48V DC
- Continuous Rating: 300A
- Intermittent Rating (5 min): 500A
- Cranking Rating (30 sec): 900A
- Terminal Stud Size: 3/8"
- Terminal Stud Torque: 120 in-lb (13.56 Nm)
- Mounting Options: Surface, Front, or Rear Panel
