Description

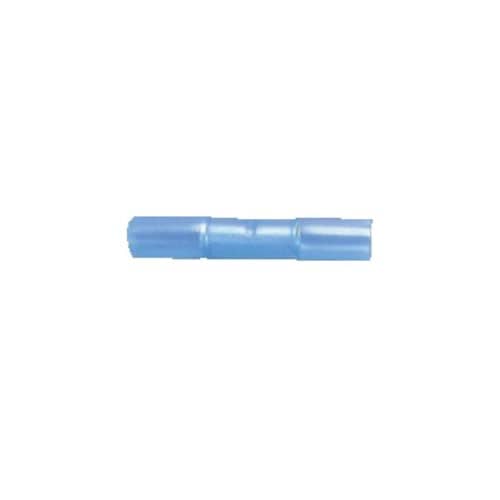

Engineered for both strength and protection, the Blue Heatshrink Butt Connector 4.0mm delivers a reliable solution for splicing and securing electrical wires. This connector features a dual-wall design with a heat-activated hot melt adhesive lining that seals the connection against moisture, dust, and corrosion.
With a shrinkable temperature range of +125°C to 180°C and an operating range from -45°C to +125°C, it is suitable for demanding environments, including automotive, marine, and outdoor applications. The low insertion force allows for straightforward installation, while the tin-plated copper conductor ensures high conductivity and corrosion resistance.
Rated for use in systems up to 600V, this connector offers long-term reliability and secure electrical performance.
Key Features
- Adhesive Lining: Integrated hot melt adhesive provides a waterproof seal once heated.
- Wide Operating Range: Performs in environments from -45°C to +125°C, ideal for diverse applications.
- High Shrinkability: Shrinks effectively at +125°C to 180°C, ensuring a tight and protective fit.
- Voltage Capacity: Rated for use in circuits up to 600V.
- Durable Materials: Tin-plated copper conductor with resilient polyethylene insulation ensures longevity.
- Easy Installation: Low insertion force for hassle-free crimping and strong wire retention.
- Vibration & Moisture Resistant: Offers robust environmental sealing for long-lasting connections.
Specifications
- Attribute: Specification
- Connector Type: Heatshrink Butt Connector
- Wire Size: 4.0mm
- Insulation Type: Heatshrink with hot melt adhesive
- Material – Conductor: High-grade Copper
- Plating: Tin
- Material – Insulation: Polyethylene
- Shrink Temperature: +125°C to 180°C
- Operating Temperature: -45°C to +125°C
- Voltage Rating: Up to 600V
- Installation Method: Crimp & heat (low insertion force)
